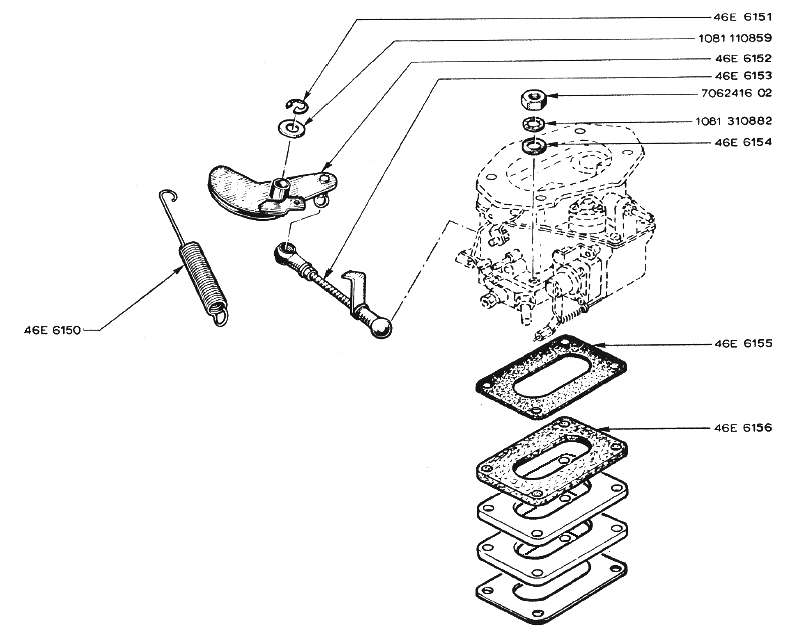

LOTUS EUROPA S1 PARTS MANUALSection E10 -- Engine -- Carburettor MountingLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (90K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6150 | 46E6150 | 1 | 1 | Spring - Throttle Return | |||||||||
| 46E6151 | 46E6151 | 1 | 1 | Circlip - Relay Lever | |||||||||
| 1081110859 | 1081110859 | 1 | 1 | Washer - Relay Lever | |||||||||
| 46E6152 | 46E6152 | 1 | 1 | Relay Lever | |||||||||
| 46E6153 | 46E6153 | 1 | 1 | Operating Lever | |||||||||
| 706241602 | 706241602 | 4 | 4 | Nut - Carburetter Mounting | |||||||||
| 1081310882 | 1081310882 | 4 | 4 | Star Washer - Carburetter Mounting | |||||||||
| 46E6154 | 46E6154 | 4 | 4 | Washer - plain - 8 mm. Carburetter Mounting | |||||||||
| 46E6155 | 46E6155 | 3 | 3 | Joint | |||||||||
| 46E6156 | 46E6156 | 2 | 2 | Insulator |
