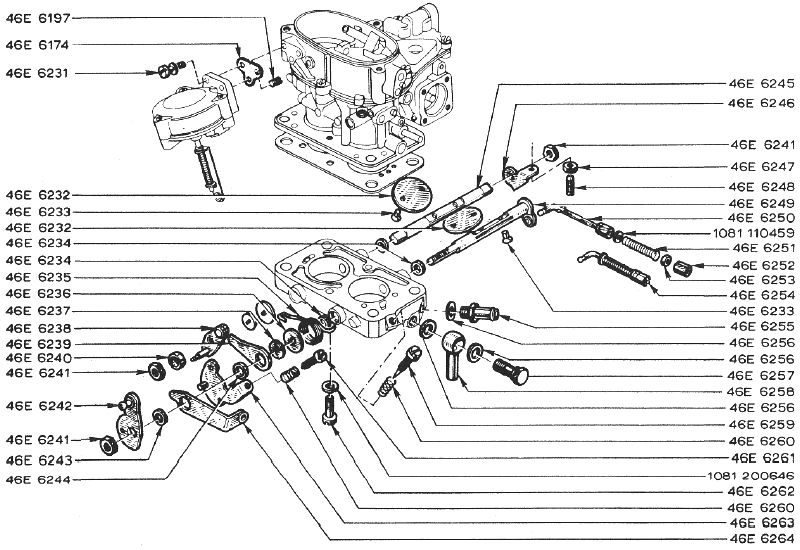

LOTUS EUROPA S1 PARTS MANUALSection E13 -- Engine -- Carburettor InteriorLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (270K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6197 | 46E6197 | 1 | 1 | Jet - 80 | |||||||||
| 46E6174 | 46E6174 | 2 | 2 | Screw - Vacuum Control to Cover | |||||||||
| 46E6231 | 46E6231 | 1 | 1 | Carburetter Gasket - Vacuum Control to Cover (697-04) | |||||||||
| 46E6232 | 46E6232 | 1 | 1 | Throttle Valve | |||||||||
| 46E6233 | 46E6233 | 2 | 2 | Screw | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 46E6234 | 46E6234 | 2 | 2 | Spacer bush | |||||||||
| 46E6235 | 46E6235 | 1 | 1 | Return Spring | |||||||||
| 46E6236 | 46E6236 | 2 | 2 | Washer | |||||||||
| 46E6237 | 46E6237 | 2 | 2 | Washer | |||||||||
| 46E6238 | 46E6238 | 1 | 1 | Stop lever - Second Stage | |||||||||
| 46E6239 | 46E6239 | 1 | 1 | Intermediate Lever | |||||||||
| 46E6240 | 46E6240 | 1 | 1 | Spacer Bush | |||||||||
| 46E6241 | 46E6241 | 1 | 1 | Nut - Throttle Shaft | |||||||||
| 46E6242 | 46E6242 | 1 | 1 | Lever - Throttle Control | |||||||||
| 46E6243 | 46E6243 | 1 | 1 | Spacer Bush - 10.9 x 18.1 x 2 mm. | |||||||||
| 46E6244 | 46E6244 | 1 | 1 | Spacer Bush - 11 x 8 x 3 mm. | |||||||||
| 46E6245 | 46E6245 | 1 | 1 | Shaft - Throttle valve | |||||||||
| 46E6246 | 46E6246 | 1 | 1 | Stop Lever | |||||||||
| 46E6247 | 46E6247 | 1 | 1 | Lock Nut - Throttle Stop | |||||||||
| 46E6248 | 46E6248 | 1 | 1 | Adjustment Screw - Throttle Stop | |||||||||
| 46E6249 | 46E6249 | 1 | 1 | Shaft with lever - throttle valve | |||||||||
| 46E6250 | 46E6250 | 1 | 1 | Link - Accelerator pump | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 108110459 | 108110459 | 1 | 1 | Washer - Accelerator Pump Link | |||||||||
| 46E6251 | 46E6251 | 1 | 1 | Spring - Accelerator pump link | |||||||||
| 46E6252 | 46E6252 | 1 | 1 | Nut - Accelerator pump link | |||||||||
| 46E6253 | 46E6253 | 2 | 2 | Nut - Accelerator pump link | |||||||||
| 46E6254 | 46E6254 | 1 | 1 | Link Assembly - Accelerator pump | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 46E6255 | 46E6255 | 1 | 1 | Connector - Vacuum Hose | |||||||||
| 46E6256 | 46E6256 | 1 | 1 | Washer | |||||||||
| 46E6257 | 46E6257 | 1 | 1 | Banjo Bolt | |||||||||
| 46E6258 | 46E6258 | 1 | 1 | Connector - banjo | |||||||||
| 46E6259 | 46E6259 | 1 | 1 | Idle Screw - Non-Emission | |||||||||
| 46E6260 | 46E6260 | 1 | 1 | Spring - Idle Screw - Non_Emission | |||||||||
| 46E6261 | 46E6261 | 1 | 1 | Screw - Throttle Stop | |||||||||
| 1081200646 | 1081200646 | 2 | 2 | Washer - Throttle Block to Carburetter Body | |||||||||
| 46E6262 | 46E6262 | 2 | 2 | Screw - Throttle Block to Carburetter Body | |||||||||
| 46E6263 | 46E6263 | 1 | 1 | Stop Lever - Idle Adjustment | |||||||||
| 46E6264 | 46E6264 | 1 | 1 | Lever - Choke Operating Link | Up to Eng. No. 0391 |
