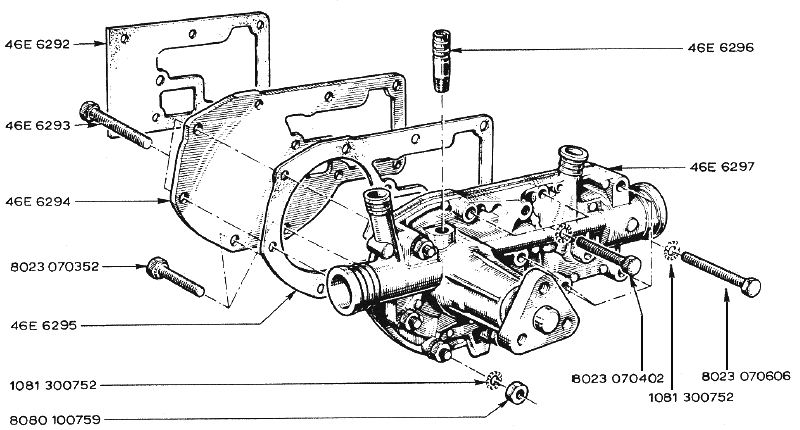

LOTUS EUROPA S1 PARTS MANUALSection E17 -- Engine -- Water PumpLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (90K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6292 | 46E6292 | 1 | 1 | Water Pump Gasket - Intermediate Plate to Cylinder Block | |||||||||
| 46E6293 | 46E6293 | 2 | 2 | Bolt - 7 x 55 | (697-04) to Eng. No. 1641 | ||||||||
| 46E6294 | 46E6294 | 1 | 1 | Intermediate Plate | |||||||||
| 8023070352 | 8023070352 | 2 | 2 | Bolt - 7 x 55 | (697-04) to Eng. No. 1641 | ||||||||
| 46E6295 | 46E6295 | 1 | 1 | Water Pump Gasket - Pump to Intermediate Plate | |||||||||
| 1081300752 | 1081300752 | 4 | 4 | Washer | |||||||||
| 8080100759 | 8080100759 | 4 | 4 | Nut | |||||||||
| 46E6296 | 46E6296 | 1 | 1 | Connector - Hose to Throttle Block | |||||||||
| 46E6297 | 46E6297 | 1 | 1 | Water Pump Assembly replaced by A054E6058 | - More Info - | ||||||||
| 8023070606 | 8023070606 | 4 | 4 | Bolt - 7 x 60 | |||||||||
| 823070402 | 823070402 | 3 | 3 | Bolt - 7 x 40 |
