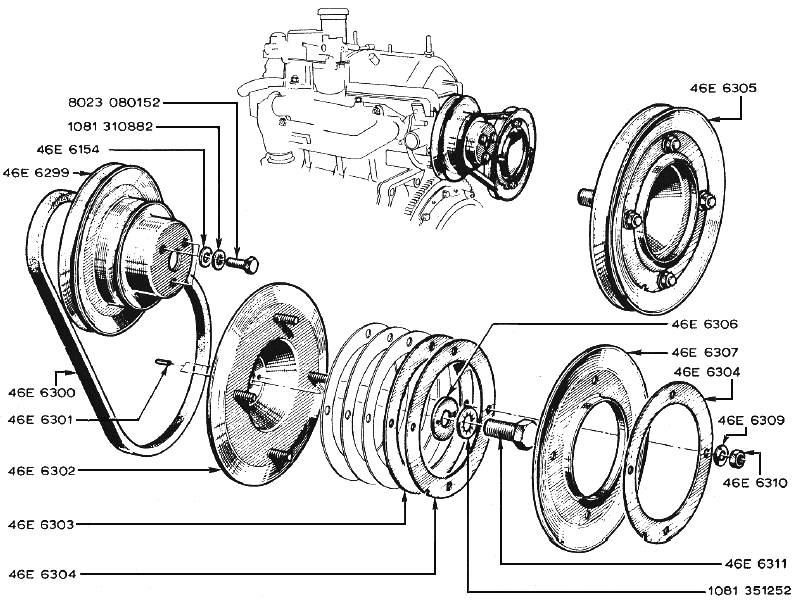

LOTUS EUROPA S1 PARTS MANUALSection E18 -- Engine -- Pulleys and BeltsLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (130K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 8023080152 | 8023080152 | 3 | 3 | Bolt - Pulley to Water Pump | |||||||||
| 1081310882 | 1081310882 | 3 | 3 | Star Washer - Pulley to Water Pump | |||||||||
| 46E6299 | 46E6299 | 1 | 1 | Water pump pulley - replaced by A046E6488 | |||||||||
| 46E6300 | 46E6300 | 1 | 1 | Drive Belt - Cam to Water Pump | - More Info - | ||||||||
| 46E6301 | 46E6301 | 2 | 2 | Dowel pin - replaced by A054E6071 and 1 of A054E6072 Locating washer | |||||||||
| 46E6302 | 46E6302 | 1 | 1 | Hub - Camshaft pulley - replaced by A054E6072 and A054E6073 | |||||||||
| 46E6303 | 46E6303 | 4 | 4 | Disc - Camshaft pulley - 0.95 | |||||||||
| 46E6304 | 46E6304 | 2 | 2 | Disc - Camshaft pulley - 0.50 | |||||||||
| 46E6305 | 46E6305 | 1 | 1 | Camshaft Pulley | Up to Eng. No. 1066 | ||||||||
| 46E6306 | 46E6306 | 1 | 1 | Locating washer (697-04) - replaced by A054E6074 and 2 of A054E6072 | Up to Eng. No. 1066 | ||||||||
| 46E6307 | 46E6307 | 1 | 1 | Hub support - replaced by A054E6074 | |||||||||
| 46E6309 | 46E6309 | 4 | 4 | Dished washer - Pulley retaining | |||||||||
| 46E6310 | 46E6310 | 4 | 4 | Nut - Pulley retaining | |||||||||
| 46E6311 | 46E6311 | 1 | 1 | Bolt - Pulley to camshaft | |||||||||
| 1081351252 | 1081351252 | 1 | 1 | Washer - Pulley to camshaft | |||||||||
| 46E6154 | 46E6154 | 3 | 3 | Washer - Pulley to Water Pump |
