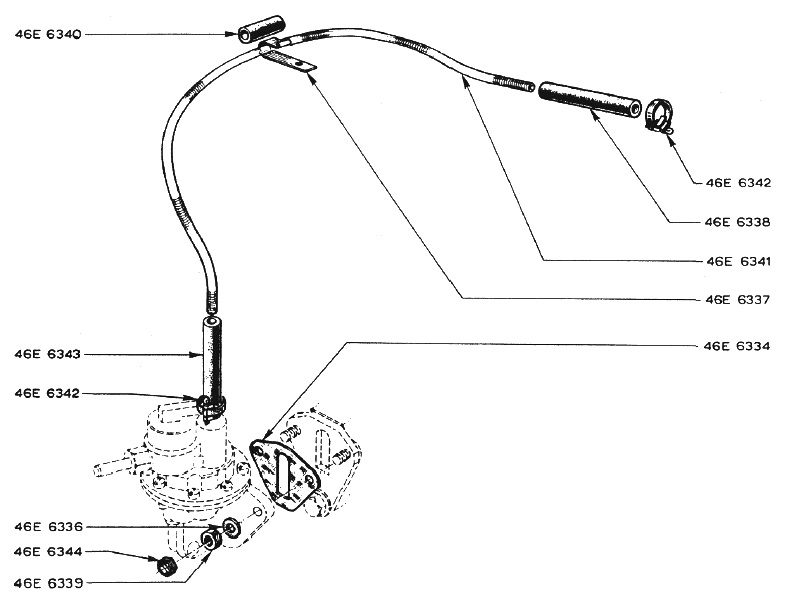

LOTUS EUROPA S1 PARTS MANUALSection E20 -- Engine -- Fuel HosesLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (70K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6340 | 46E6340 | 1 | 1 | Sleeve - 25 mm. Long | |||||||||
| 46E6343 | 46E6343 | 1 | 1 | Fuel Line - Pump to Carburettor | |||||||||
| 46E6342 | 46E6342 | 4 | 4 | Clip - Fuel line | |||||||||
| 46E6336 | 46E6336 | 2 | 2 | Washer - Fuel pump to cylinder block | |||||||||
| 46E6344 | 46E6344 | 2 | 2 | Lock Nut - Fuel pump to cylinder block | |||||||||
| 46E6339 | 46E6339 | 2 | 2 | Nut - Fuel pump to cylinder block | |||||||||
| 46E6338 | 46E6338 | 1 | 1 | Hose - Pump Connection to Fuel line | To chassis No. 2519 and 1177 | ||||||||
| 46E6341 | 46E6341 | 1 | 1 | Fuel Line - Pump to Carburetter | To chassis No. 2519 and 1177 | ||||||||
| 46E6337 | 46E6337 | 1 | 1 | Clip - Fuel line support | |||||||||
| 46E6334 | 46E6334 | 1 | 1 | Gasket - Fuel pump mounting - replaced by A046E6490 |
