LOTUS EUROPA S1 PARTS MANUAL

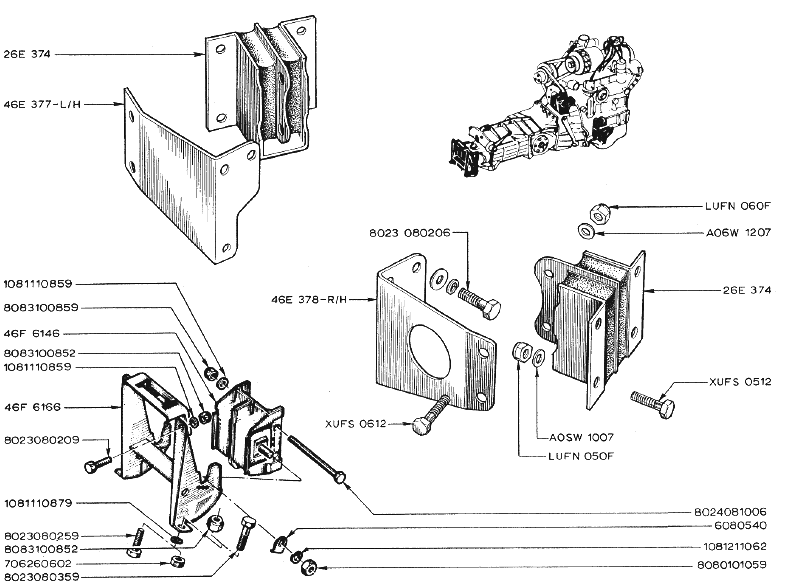

Section E21 -- Engine -- Engine Mounting

Lotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (130K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
26E374 26E3742 2         Engine Mounting - replaced by 054E6000
46E377 46E3771 1         Mounting Bracket LH
108110859 1081108592 2         Washer - Gearbox Mounting to Gearbox
8083100859 80831008592 2         Nut - Gearbox Mounting to Gearbox
46F6146 46F61461 1         Gear Box Mounting (697-04)
46F6166 46F61661 1         Gear Box Mounting Bracket
1081110879 10811108792 2         Washer - Gearbox Mounting to Chassis
8023080259 80230802592 2         Bolt - Gearbox Mounting to Chassis
706260602 7062606022 2         Spacer - Gearbox Mounting to Chassis
8023080359 80230803592 2         Nut
8023080206 80230802064 4         Bolt - Engine Mounting to Chassis
46E378 46E3781 1         Mounting Bracket RH
XUFS0612 XUFS06124 4         Bolt - Engine Mounting Bracket to Engine Mounting
LUFN060F LUFN060F4 4         Nut - Engine Mounting Bracket to Engine Mounting 9/16" Nyloc
A06W1207 A06W12074 4         Washer - Engine Mounting Bracket to Engine Mounting
XUFS0512 XUFS05128 8         Bolt - Engine Mounting to Chassis 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
A0SW1007 A0SW10078 8         Washer - Engine Mounting to Chassis
LUFN050F LUFN050F8 8         Nut - Engine Mounting to Chassis 5/16" x 24 TPI, 1/2" head
8024081006 80240810062 2         Bolt - 8 x 100 mm - Gearbox Mounting to Gearbox
6080540 60805402 2         Washer - Gear Box Mounting to Gear Box
1081211062 10812110622 2         Washer - Gear Box Mounting to Gear Box
8080101059 80801010592 2         Nut - Gear Box Mounting to Gear Box
8083100852 80831008522 2         Nut
8023080209 80230802092 2         Bolt - Gear Box Mounting Bracket to Gear Box Mounting
