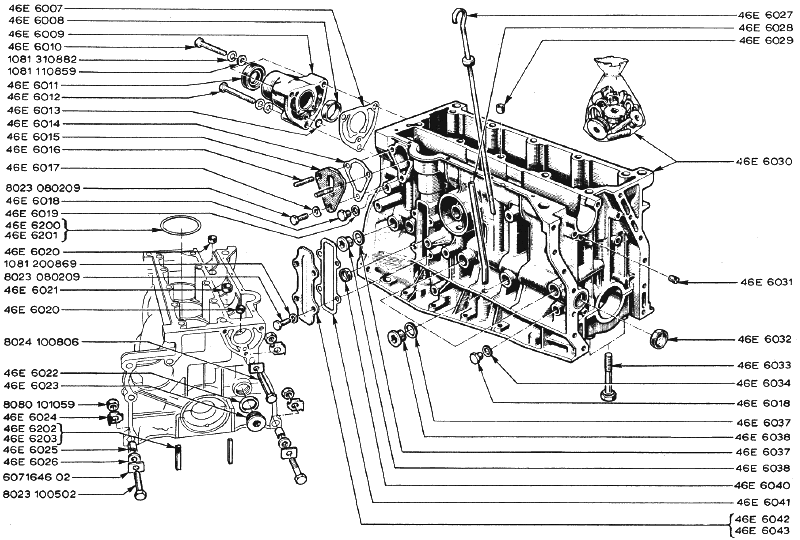

LOTUS EUROPA S1 PARTS MANUALSection E4 -- Engine -- BlockLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (320K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6007 | 46E6007 | 1 | 1 | Camshaft Housing to Cylinder Block Gasket | |||||||||
| 46E6008 | 46E6008 | 1 | 1 | Bearing - Camshaft Housing | |||||||||
| 46E6009 | 46E6009 | 1 | 1 | Housing - Camshaft Bearing | |||||||||
| 46E6010 | 46E6010 | 2 | 2 | Bolt - 8 x 52 - Camshaft Bearing | |||||||||
| 1081310882 | 1081310882 | 3 | 3 | Star Washer - Camshaft Bearing | |||||||||
| 1081110859 | 1081110859 | 3 | 3 | Washer - Camshaft Bearing | |||||||||
| 46E6011 | 46E6011 | 1 | 1 | Seal Ring - Camshaft Housing 32 x 45 x 10 mm. | |||||||||
| 46E6012 | 46E6012 | 1 | 1 | Bolt - 8 x 72 | |||||||||
| 46E6013 | 46E6013 | 1 | 1 | O Ring - 8.9 x 12.7 x 1.9 mm. | |||||||||
| 46E6014 | 46E6014 | 1 | 1 | Fuel Pump Mounting Gasket | |||||||||
| 46E6015 | 46E6015 | 1 | 1 | Fuel Pump Mounting | |||||||||
| 46E6016 | 46E6016 | 2 | 2 | Stud - Fuel Pump Mounting | |||||||||
| 46E6017 | 46E6017 | 1 | 1 | Washer - Fuel Pump Mounting | |||||||||
| 8023080209 | 8023080209 | 1 | 1 | Bolt - Fuel Pump Mounting | |||||||||
| 46E6018 | 46E6018 | 1 | 1 | Plug | |||||||||
| 46E6019 | 46E6019 | 1 | 1 | Seal | |||||||||
| 46E6200 | 46E6200 | 4 | 4 | Shim - 0.07 mm. | |||||||||
| 46E6201 | 46E6201 | 4 | 4 | Shim - 0.10 (697-04) Optional | |||||||||
| 46E6020 | 46E6020 | 2 | 2 | Plug | |||||||||
| 1081200869 | 1081200869 | 4 | 4 | Washer - Cover Plate | |||||||||
| 8023080209 | 8023080209 | 4 | 4 | Bolt - Cover Plate | |||||||||
| 46E6021 | 46E6021 | 1 | 1 | Plug | |||||||||
| 8024100806 | 8024100806 | Bolt | |||||||||||
| 46E6022 | 46E6022 | 1 | 1 | Seal | |||||||||
| 46E6023 | 46E6023 | 1 | 1 | Screw Plug | |||||||||
| 8080101059 | 8080101059 | 3 | 3 | Nut | |||||||||
| 46E6024 | 46E6024 | 3 | 3 | Lock Plate | |||||||||
| 46E6202 | 46E6202 | 2 | 2 | Joint - 5.1 mm. - or 046E6203 | |||||||||
| 46E6203 | 46E6203 | 2 | 2 | Joint - 5.4 mm. - or 046E6202 | |||||||||
| 46E6025 | 46E6025 | 2 | 2 | Bush | |||||||||
| 46E6026 | 46E6026 | 2 | 2 | Washer | |||||||||
| 607164602 | 607164602 | 3 | 3 | Washer | |||||||||
| 8023100502 | 8023100502 | 2 | 2 | Bolt 10 x 50 mm | |||||||||
| 46E6027 | 46E6027 | 1 | 1 | Dipstick | Renault # 0833113100 - More Info - | ||||||||
| 46E6028 | 46E6028 | 1 | 1 | Dipstick Tube | Renault # 0608111500 | ||||||||
| 46E6029 | 46E6029 | 1 | 1 | Dowel Pin - 2 x 1.5 x 11mm. | |||||||||
| 46E6030 | 46E6030 | 1 | 1 | Cylinder Block (697-04) Replaced by F046E6376 | |||||||||
| 46E6031 | 46E6031 | Blanking Plug (697-04) | Up to Eng. No. 0052 | ||||||||||
| 46E6032 | 46E6032 | Plug | |||||||||||
| 46E6033 | 46E6033 | Bolt - Main Bearing Cap 10 x 67 | |||||||||||
| 46E6034 | 46E6034 | 1 | 1 | Seal Ring | |||||||||
| 46E6037 | 46E6037 | 4 | 4 | Seal Ring | |||||||||
| 46E6038 | 46E6038 | 4 | 4 | Screw Plug M18x1.5 | |||||||||
| 46E6040 | 46E6040 | 1 | 1 | Plug | |||||||||
| 46E6041 | 46E6041 | 1 | 1 | Gasket | |||||||||
| 46E6042 | 46E6042 | 1 | 1 | Cover plate (697-04) | |||||||||
| 46E6043 | 46E6043 | 1 | 1 | Cover Plate |
