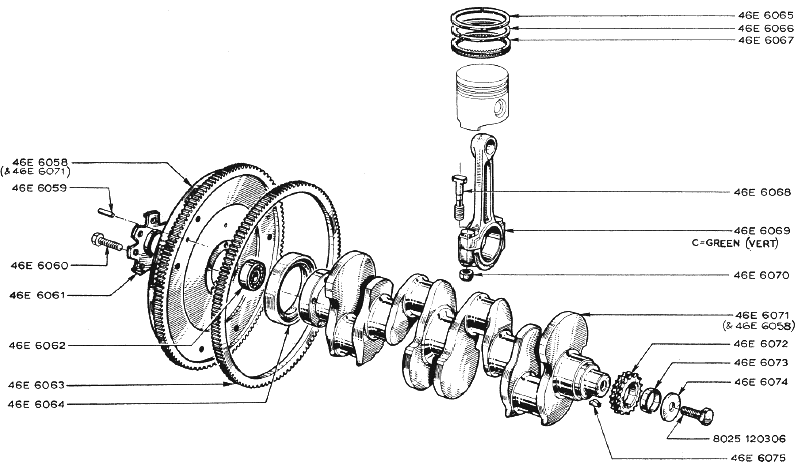

LOTUS EUROPA S1 PARTS MANUALSection E6 -- Engine -- Pistons, Rods and CrankLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (100K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6058 | 46E6058 | 1 | 1 | Flywheel | |||||||||
| 46E6059 | 46E6059 | 3 | 3 | Dowel Pin | |||||||||
| 46E6060 | 46E6060 | 5 | 5 | Bolt - flywheel to cranksahft | |||||||||
| 46E6061 | 46E6061 | 1 | 1 | Lock Plate | |||||||||
| 46E6062 | 46E6062 | 1 | 1 | Bearing - Clutch spigot shaft | |||||||||
| 46E6063 | 46E6063 | 1 | 1 | Ring Gear - flywheel | |||||||||
| 46E6064 | 46E6064 | 1 | 1 | Crankshaft Seal (697-04) only | - More Info - | ||||||||
| 46E6065 | 46E6065 | 4 | 4 | Piston Ring - Top (697-04) | Up to Eng. No. 0198 | ||||||||
| 46E6066 | 46E6066 | 4 | 4 | Piston Ring - Centre (697-04) | |||||||||
| 46E6067 | 46E6067 | 4 | 4 | Piston Ring - Bottom (697-04) | |||||||||
| 46E6068 | 46E6068 | 8 | 8 | Bolt - Connecting Rod | |||||||||
| 46E6069 | 46E6069 | 4 | 4 | Connecting Rod (697-04) 433 grams | C=Green | ||||||||
| 46E6070 | 46E6070 | 8 | 8 | Nut - Connecting Rod | |||||||||
| 46E6071 | 46E6071 | 1 | 1 | Crankshaft (694-04) | Up to Eng. No. 0066 Eng. No 0067 on use 046E6389 | ||||||||
| 46E6072 | 46E6072 | 1 | 1 | Sprocket | |||||||||
| 46E6073 | 46E6073 | 1 | 1 | Spacer - Sprocket Wheel | |||||||||
| 46E6074 | 46E6074 | 1 | 1 | Washer - Sprocket Wheel to Crankshaft | |||||||||
| 8025120306 | 8025120306 | 1 | 1 | Bolt - Sprocket Wheel to Crankshaft | |||||||||
| 46E6075 | 46E6075 | 1 | 1 | Woodruff Key - Sprocket Wheel to Crankshaft | From Eng. No. 2556 (697-04) |
