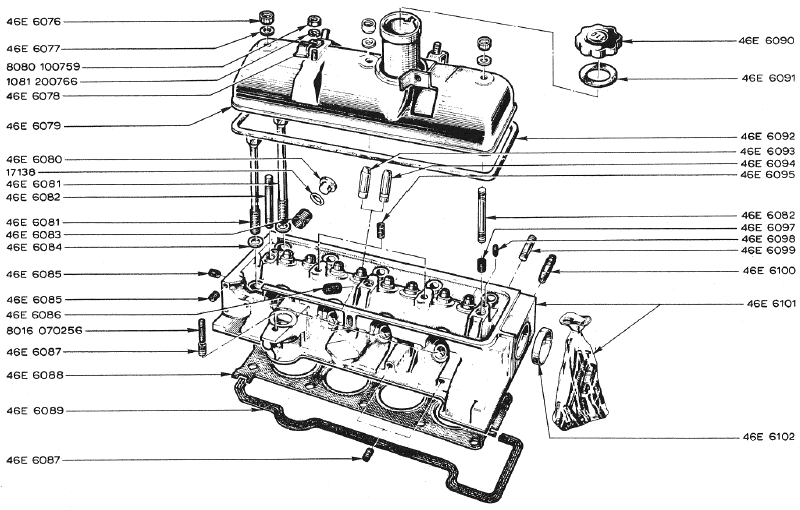

LOTUS EUROPA S1 PARTS MANUALSection E7 -- Engine -- Cylinder HeadLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (140K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46E6076 | 46E6076 | 3 | 3 | Nut - Rocker Cover | |||||||||
| 46E6077 | 46E6077 | 3 | 3 | Washer - Rocker Cover | - More Info - | ||||||||
| 8080100759 | 8080100759 | 1 | 1 | Nut - | |||||||||
| 1081200766 | 1081200766 | 1 | 1 | Washer - | |||||||||
| 46E6078 | 46E6078 | 1 | 1 | Mounting Bracket | |||||||||
| 46E6079 | 46E6079 | 1 | 1 | Rocker Cover - or 046E6390 or 046E6079 | - More Info - | ||||||||
| 46E6080 | 46E6080 | 1 | 1 | Plug (697-04 only) | |||||||||
| 17138 | 17138 | 1 | 1 | Seal Ring | |||||||||
| 46E6081 | 46E6081 | 5 | 5 | Cylinder Head Bolt (697-04) | |||||||||
| 46E6082 | 46E6082 | 3 | 3 | Stud - Cam Support Pillar | |||||||||
| 46E6083 | 46E6083 | 1 | 1 | Heli Coil Insert | |||||||||
| 46E6084 | 46E6084 | 10 | 10 | Washer - Cylinder Head Bolt (697-04) | Up to Eng. No. 0565 Qty 10 Eng. No. 0566 to 0866 Qty 8 From Eng. No. 0867 Qty 9 | ||||||||
| 46E6085 | 46E6085 | 10 | 10 | Heli Coil Insert | |||||||||
| 46E6086 | 46E6086 | 4 | 4 | Heli Coil Insert - or 046E6392 | |||||||||
| 8016070256 | 8016070256 | 1 | 1 | Stud - Distributor to Cylinder Head | |||||||||
| 46E6087 | 46E6087 | 3 | 3 | Heli Coil Insert | |||||||||
| 46E6088 | 46E6088 | 1 | 1 | Cylinder Head Gasket (697-04) | |||||||||
| 46E6089 | 46E6089 | 1 | 1 | Joint Cylinder Head (697-04) | |||||||||
| 46E6090 | 46E6090 | 1 | 1 | Oil Filler Cap | |||||||||
| 46E6091 | 46E6091 | 1 | 1 | Seal Ring - Oil Filler Cap - or 046E6393 | |||||||||
| 46E6092 | 46E6092 | 1 | 1 | Rocker Cover Gasket | - More Info - | ||||||||
| 46E6093 | 46E6093 | 8 | 8 | Valve Guide - 13.10 mm. - or 046E6094 | |||||||||
| 46E6094 | 46E6094 | 8 | 8 | Valve Guide - 13.25 mm. - or 046E6093 | |||||||||
| 46E6095 | 46E6095 | 2 | 2 | Heli Coil Insert | |||||||||
| 46E6097 | 46E6097 | 4 | 4 | Heli Coil Insert | |||||||||
| 46E6098 | 46E6098 | 2 | 2 | Dowel Pin | |||||||||
| 46E6099 | 46E6099 | 4 | 4 | Stud | |||||||||
| 46E6100 | 46E6100 | 1 | 1 | Connector (697-04) | |||||||||
| 46E6101 | 46E6101 | 1 | 1 | Cylinder Head (697-04) replaced by A046E6101 & 2 of 054E6010 Nut | |||||||||
| 46E6102 | 46E6102 | 1 | 1 | Plug |
