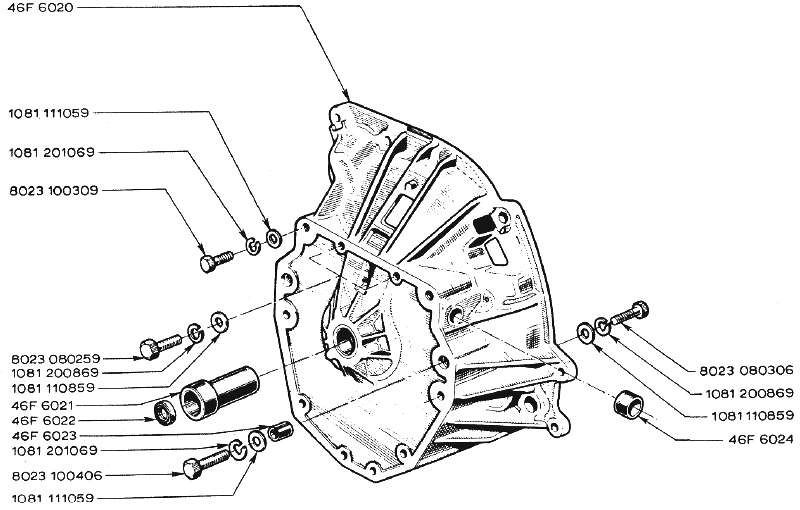

LOTUS EUROPA S1 PARTS MANUALSection F3 -- Transmission -- Bell HousingLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (100K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46F6020 | 46F6020 | 1 | 1 | Bell Housing - Replaced by A046F6020 | |||||||||
| 8023100309 | 8023100309 | 2 | 2 | Bolt 10 x 35 | |||||||||
| 8023080259 | 8023080259 | 2 | 2 | Bolt 8 x 25 | |||||||||
| 1081200869 | 1081200869 | 8 | 8 | Spring Washer | |||||||||
| 1081110859 | 1081110859 | 8 | 8 | Washer | |||||||||
| 46F6021 | 46F6021 | 1 | 1 | Seal Carrier | |||||||||
| 46F6022 | 46F6022 | 1 | 1 | Seal (697-04) | |||||||||
| 46F6023 | 46F6023 | 2 | 2 | Bushing | |||||||||
| 1081201069 | 1081201069 | 4 | 4 | Spring Washer | |||||||||
| 8023100406 | 8023100406 | 2 | 2 | Bolt 10 x 45 | |||||||||
| 1081111059 | 1081111059 | 4 | 4 | Washer | |||||||||
| 8023080306 | 8023080306 | 6 | 6 | Bolt 8 x 30 | |||||||||
| 46F6024 | 46F6024 | 2 | 2 | Bushing - Cross Shaft |
