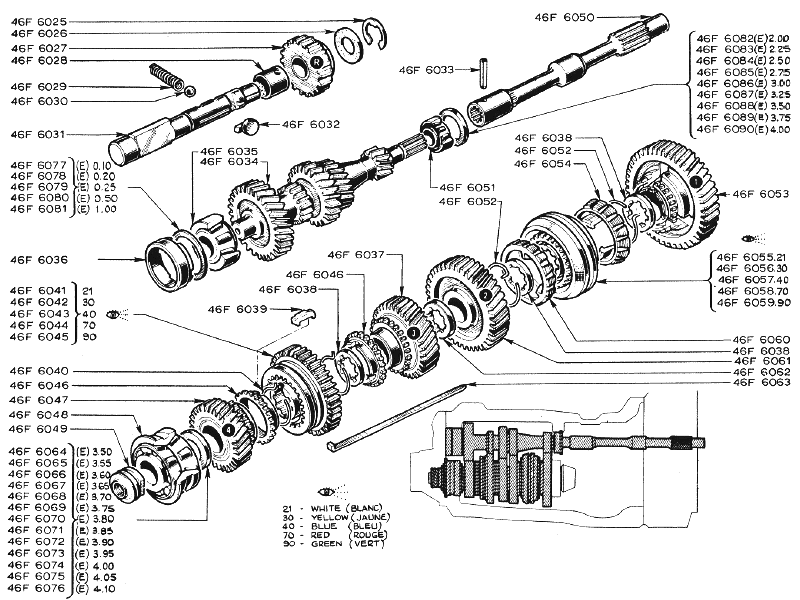

LOTUS EUROPA S1 PARTS MANUALSection F4 -- Transmission -- Gear SetLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (500K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46F6025 | 46F6025 | 1 | 1 | Circlip | |||||||||
| 46F6026 | 46F6026 | 1 | 1 | Thrust Washer | |||||||||
| 46F6027 | 46F6027 | 1 | 1 | Reverse Gear | |||||||||
| 46F6028 | 46F6028 | 1 | 1 | Bush - Reverse Gear | |||||||||
| 46F6029 | 46F6029 | 1 | 1 | Selector Spring (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6030 | 46F6030 | 1 | 1 | Selector Ball - 8 mm. - Reverse Gear Shaft (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6031 | 46F6031 | 1 | 1 | Shaft - Reverse Gear (Type 336-08 - 336-26 - & 336-46) | |||||||||
| 46F6077 | 46F6077 | Shim 0.10 mm. - Optional (As Required) | |||||||||||
| 46F6078 | 46F6078 | Shim 0.20 mm. - Optional (As Required) | |||||||||||
| 46F6079 | 46F6079 | Shim 0.25 mm. - Optional (As Required) | |||||||||||
| 46F6080 | 46F6080 | Shim 0.50 mm. - Optional (As Required) | |||||||||||
| 46F6081 | 46F6081 | Shim 1.00 mm. - Optional (As Required) | |||||||||||
| 46F6036 | 46F6036 | 1 | 1 | Retaining Ring | |||||||||
| 46F6041 | 46F6041 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (White) | |||||||||
| 46F6042 | 46F6042 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Yellow) | |||||||||
| 46F6043 | 46F6043 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Blue) | |||||||||
| 46F6044 | 46F6044 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Red) | |||||||||
| 46F6045 | 46F6045 | 1 | 1 | Synchroniser - 3rd. & 4th. Speed (Green) | |||||||||
| 46F6040 | 46F6040 | 2 | 2 | Spring Clip - 3rd. & 4th. Speed Synchroniser | |||||||||
| 46F6046 | 46F6046 | 2 | 2 | Synchroniser Ring - 3rd. & 4th. Speed | |||||||||
| 46F6047 | 46F6047 | 1 | 1 | Gear - 4th. Speed | |||||||||
| 46F6048 | 46F6048 | 1 | 1 | Bearing | |||||||||
| 46F6049 | 46F6049 | 1 | 1 | Nut - Pinion | |||||||||
| 46F6064 | 46F6064 | Shim 3.50 mm. (Optional - As Required) | |||||||||||
| 46F6065 | 46F6065 | Shim 3.55 mm. (Optional - As Required) | |||||||||||
| 46F6066 | 46F6066 | Shim 3.60 mm. (Optional - As Required) | |||||||||||
| 46F6067 | 46F6067 | Shim 3.65 mm. (Optional - As Required) | |||||||||||
| 46F6068 | 46F6068 | Shim 3.70 mm. (Optional - As Required) | |||||||||||
| 46F6069 | 46F6069 | Shim 3.75 mm. (Optional - As Required) | |||||||||||
| 46F6070 | 46F6070 | Shim 3.80 mm. (Optional - As Required) | |||||||||||
| 46F6071 | 46F6071 | Shim 3.85 mm. (Optional - As Required) | |||||||||||
| 46F6072 | 46F6072 | Shim 3.90 mm. (Optional - As Required) | |||||||||||
| 46F6073 | 46F6073 | Shim 3.95 mm. (Optional - As Required) | |||||||||||
| 46F6074 | 46F6074 | Shim 4.00 mm. (Optional - As Required) | |||||||||||
| 46F6075 | 46F6075 | Shim 4.05 mm. (Optional - As Required) | |||||||||||
| 46F6076 | 46F6076 | Shim 4.10 mm. (Optional - As Required) | |||||||||||
| 46F6032 | 46F6032 | 1 | 1 | Guide (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6035 | 46F6035 | 1 | 1 | Bearing - Primary Shaft | |||||||||
| 46F6034 | 46F6034 | 1 | 1 | Primary Shaft (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6039 | 46F6039 | 3 | 3 | Keys - 3rd. & 4th. Speed Synchroniser | |||||||||
| 46F6038 | 46F6038 | 3 | 3 | Thrust Washer | |||||||||
| 46F6037 | 46F6037 | 1 | 1 | Gear - 3rd. Speed | |||||||||
| 46F6052 | 46F6052 | 2 | 2 | Spring Clip - Synchroiser - 1st. & 2nd. Speed | |||||||||
| 46F6054 | 46F6054 | 1 | 1 | Synchroiser Ring - 1st. Speed | |||||||||
| 46F6033 | 46F6033 | 1 | 1 | Tension Pin | |||||||||
| 46F6050 | 46F6050 | 1 | 1 | Drive Shaft | |||||||||
| 46F6051 | 46F6051 | 1 | 1 | Bearing - Primary Shaft | |||||||||
| 46F6082 | 46F6082 | Shim 2.00 mm. - Optional (As Required) | |||||||||||
| 46F6083 | 46F6083 | Shim 2.25 mm. - Optionall (As Required) | |||||||||||
| 46F6084 | 46F6084 | Shim 2.50 mm. - Optionall (As Required) | |||||||||||
| 46F6085 | 46F6085 | Shim 2.75 mm. - Optionall (As Required) | |||||||||||
| 46F6086 | 46F6086 | Shim 3.00 mm. - Optionall (As Required) | |||||||||||
| 46F6087 | 46F6087 | Shim 3.25 mm. - Optionall (As Required) | |||||||||||
| 46F6088 | 46F6088 | Shim 3.50 mm. - Optionall (As Required) | |||||||||||
| 46F6089 | 46F6089 | Shim 3.75 mm. - Optionall (As Required) | |||||||||||
| 46F6090 | 46F6090 | Shim 4.00 mm. - Optionall (As Required) | |||||||||||
| 46F6053 | 46F6053 | 1 | 1 | Gear - 1st. Speed | |||||||||
| 46F6055 | 46F6055 | 1 | 1 | Synchroiser Hub - (White) (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6056 | 46F6056 | 1 | 1 | Synchroiser Hub - (Yellow) (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6057 | 46F6057 | 1 | 1 | Synchroiser Hub - (Blue) (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6058 | 46F6058 | 1 | 1 | Synchroiser Hub - (Yellow) (Type 336-56) | |||||||||
| 46F6059 | 46F6059 | 1 | 1 | Synchroiser Hub - (Blue) (Type 336-56) | |||||||||
| 46F6060 | 46F6060 | 1 | 1 | Synchroiser Ring - 2nd. Speed | |||||||||
| 46F6061 | 46F6061 | 1 | 1 | Gear - 2nd. Speed (Type 336-08 & 336-26) | |||||||||
| 46F6062 | 46F6062 | 1 | 1 | Thrust Washer | |||||||||
| 46F6063 | 46F6063 | 1 | 1 | Key |
