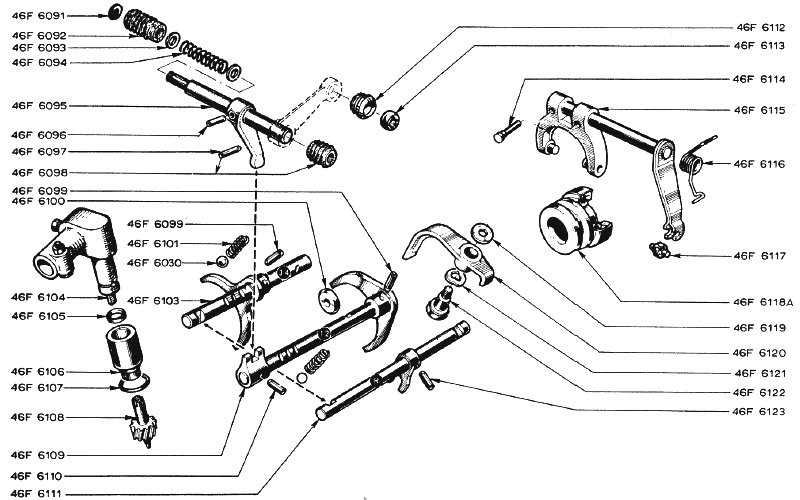

LOTUS EUROPA S1 PARTS MANUALSection F5 -- Transmission -- Shift MechanismLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (240K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46F6091 | 46F6091 | 1 | 1 | Circlip - Cross Shaft (697-04) | Up To Engine No. 0319 | ||||||||
| 46F6092 | 46F6092 | 1 | 1 | Rubber Boot | |||||||||
| 46F6093 | 46F6093 | 2 | 2 | Washer (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 | ||||||||
| 46F6094 | 46F6094 | 1 | 1 | Spring (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 | ||||||||
| 46F6095 | 46F6095 | 1 | 1 | Cross Shaft (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 - More Info - | ||||||||
| 46F6096 | 46F6096 | 2 | 2 | Tension Pin 7 x 25 mm - outer | |||||||||
| 46F6097 | 46F6097 | 2 | 2 | Tension Pin 7 x 25 mm - inner | |||||||||
| 46F6098 | 46F6098 | 1 | 1 | Rubber Boot | |||||||||
| 46F6099 | 46F6099 | 2 | 2 | Tension Pin 5 x 20 mm. | |||||||||
| 46F6100 | 46F6100 | 1 | 1 | Disc | |||||||||
| 46F6104 | 46F6104 | 1 | 1 | Speedometer Angle Drive | |||||||||
| 46F6105 | 46F6105 | 1 | 1 | Speedometer Drive Seal Ring | |||||||||
| 46F6106 | 46F6106 | 1 | 1 | Speedometer Drive Gear Guide | |||||||||
| 46F6107 | 46F6107 | 1 | 1 | Speedometer Drive Gear Guide to Gearbox O Ring | |||||||||
| 46F6108 | 46F6108 | 1 | 1 | Speedometer Drive Gear | |||||||||
| 46F6109 | 46F6109 | 1 | 1 | Selector Shaft with fork 1st. & 2nd. Speed (Type 336-08) | |||||||||
| 46F6110 | 46F6110 | 1 | 1 | Tension Pin 5 x 22 mm. | |||||||||
| 46F6111 | 46F6111 | 1 | 1 | Selector Shaft with folk - reverse | |||||||||
| 46F6101 | 46F6101 | 2 | 2 | Spring - Selector Ball (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6030 | 46F6030 | 1 | 1 | Selector Ball - 8 mm. - Reverse Gear Shaft (Type 336-08 - 336-26 & 336-46) | |||||||||
| 46F6103 | 46F6103 | 1 | 1 | Selector Shaft with folk - 3rd. & 4th. Speed | Up to Engine No. 0319 excluding 0283 & 0304 | ||||||||
| 46F6112 | 46F6112 | 1 | 1 | Ball Joint - outer | |||||||||
| 46F6113 | 46F6113 | 1 | 1 | Ball Joint - Inner | Replaced by 046F6113 | ||||||||
| 46F6114 | 46F6114 | 1 | 1 | Dowel Pin | |||||||||
| 46F6115 | 46F6115 | 1 | 1 | Shaft - Clutch Release | |||||||||
| 46F6116 | 46F6116 | 1 | 1 | Return Spring | |||||||||
| 46F6117 | 46F6117 | 1 | 1 | Toggle - Clutch Cable | |||||||||
| 46F6118A | 46F6118A | 1 | 1 | Clutch Release Bearing Assembly | Renault 0855611400 | ||||||||
| 46F6119 | 46F6119 | 1 | 1 | Spacer Washer - Selector Fixing | |||||||||
| 46F6120 | 46F6120 | 1 | 1 | Selector Bracket | |||||||||
| 46F6121 | 46F6121 | 1 | 1 | Washer - Selector Fixing | |||||||||
| 46F6122 | 46F6122 | 1 | 1 | Bolt - Selector Fixing | |||||||||
| 46F6123 | 46F6123 | 1 | 1 | Tension Pin |
