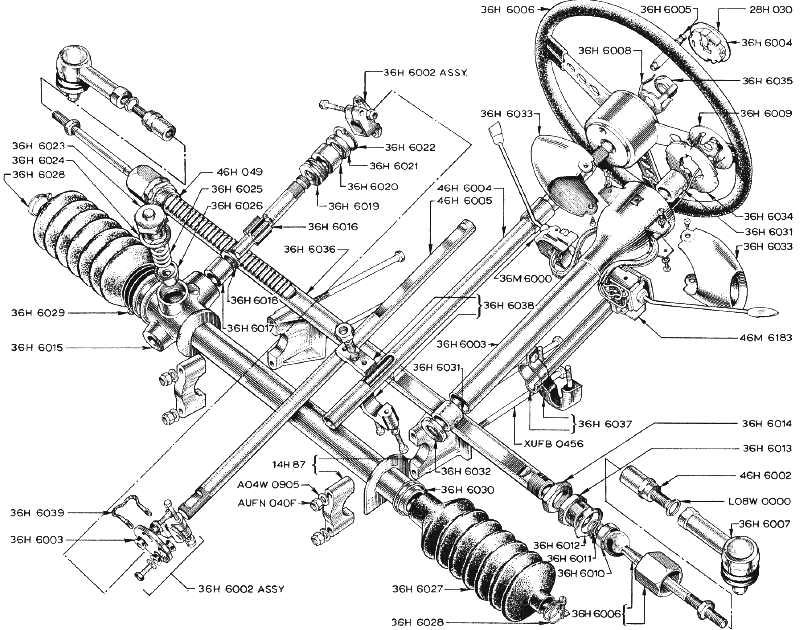

LOTUS EUROPA S1 PARTS MANUALSection H1 -- Steering -- Column and Steering UnitLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (360K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 36H6023 | 36H6023 | 1 | 1 | Cap | |||||||||
| 36H6024 | 36H6024 | 1 | 1 | O Ring | |||||||||
| 36H6025 | 36H6025 | 1 | 1 | Spring | |||||||||
| 36H6029 | 36H6029 | 1 | 1 | Clip - Bellows - Steering Rack | |||||||||
| 36H6015 | 36H6015 | 1 | 1 | Steering Rack Housing | - More Info - | ||||||||
| 36H6039 | 36H6039 | 1 | 1 | Ground Strap | |||||||||
| 36H6003 | 36H6003 | 1 | 1 | Universal Joint | |||||||||
| 46H049 | 46H049 | ||||||||||||
| 36H6026 | 36H6026 | 1 | 1 | Spacer | |||||||||
| 36H6018 | 36H6018 | 1 | 1 | Washer | |||||||||
| 36H6017 | 36H6017 | 1 | 1 | Spacer | |||||||||
| 14H87 | 14H87 | 2 | 2 | Mounting Bracket - Steering Rack | |||||||||
| A04W0905 | A04W0905 | 4 | 4 | Washer - Mounting Bracket - Steering Rack | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| AUFN040F | AUFN040F | 4 | 4 | Nut - Mounting Bracket - Steering Rack | 7/16" head, 1/4" x 28 TPI | ||||||||
| 36H6002 | 36H6002 | 1 | 1 | Universal Joint | |||||||||
| 36H6022 | 36H6022 | 1 | 1 | Circlip | |||||||||
| 36H6021 | 36H6021 | 1 | 1 | Seal | |||||||||
| 36H6020 | 36H6020 | 1 | 1 | Spacer | |||||||||
| 36H6019 | 36H6019 | 1 | 1 | Spring | |||||||||
| 36H6016 | 36H6016 | 1 | 1 | Steering Gear | |||||||||
| 36H6036 | 36H6036 | 1 | 1 | Steering Rack | - More Info - | ||||||||
| 36H6006 | 36H6006 | 1 | 1 | Steering Wheel | |||||||||
| 36H6005 | 36H6005 | 1 | 1 | Brush - Horn contact | |||||||||
| 36H6008 | 36H6008 | 1 | 1 | Clip - Horn push retaining | |||||||||
| 28H030 | 28H030 | 1 | 1 | Horn Button | |||||||||
| 36H6004 | 36H6004 | 1 | 1 | Horn push or 036M6090 | |||||||||
| 36H6035 | 36H6035 | 1 | 1 | Nut - Steering Wheel to column | |||||||||
| 36H6009 | 36H6009 | 1 | 1 | Contact Plate - Horn | |||||||||
| 36H6034 | 36H6034 | 1 | 1 | Slip Ring - Steering Wheel | |||||||||
| 36H6031 | 36H6031 | 2 | 2 | Spacer | |||||||||
| 36H6033 | 36H6033 | 2 | 2 | Escutcheon | |||||||||
| 36M6000 | 36M6000 | 1 | 1 | Switch - Indicators | - More Info - | ||||||||
| 36H6038 | 36H6038 | 1 | 1 | Impact Clamp | |||||||||
| 36H6032 | 36H6032 | 1 | 1 | Washer | |||||||||
| 36H6030 | 36H6030 | 2 | 2 | Clip - Bellows - Steering Rack | |||||||||
| 36H6027 | 36H6027 | 2 | 2 | Bellows - Steering Rack | - More Info - | ||||||||
| 36H6028 | 36H6028 | 2 | 2 | Clip - Bellows - Steering Rack | |||||||||
| 36H6012 | 36H6012 | 2 | 2 | Locking Washer - Tie-Rod | |||||||||
| 36H6011 | 36H6011 | 2 | 2 | Spring - Tie-Rod Socket | |||||||||
| 36H6010 | 36H6010 | 2 | 2 | Socket - Tie-Rod Assembly | |||||||||
| 36H6006 | 36H6006 | 2 | 2 | Track Rod Assembly | |||||||||
| 36H6007 | 36H6007 | 2 | 2 | Ball joint - Track Rod (Tie Rod End) | - More Info - | ||||||||
| L08W0000 | L08W0000 | 2 | 2 | Washer | |||||||||
| 46H6002 | 46H6002 | 2 | 2 | Tie-Rod Adaptor | |||||||||
| 36H6013 | 36H6013 | 2 | 2 | Nut - Steering Rack | |||||||||
| 36H6014 | 36H6014 | 2 | 2 | Nut - Steering Rack | |||||||||
| 36H6037 | 36H6037 | 1 | 1 | Clamp - Steering Column to Facia | |||||||||
| XUFB0456 | XUFB0456 | 4 | 4 | Bolt - Mounting Bracket | 3 1/2" long, 7/8" thread length, 1/4" x 28 TPI, 7/16" head | ||||||||
| 46H6004 | 46H6004 | 1 | 1 | Steering Column - Upper | |||||||||
| 46H6005 | 46H6005 | 1 | 1 | Steering Column - Lower | |||||||||
| 46M6183 | 46M6183 | 1 | 1 | Switch - Lamps selection |
