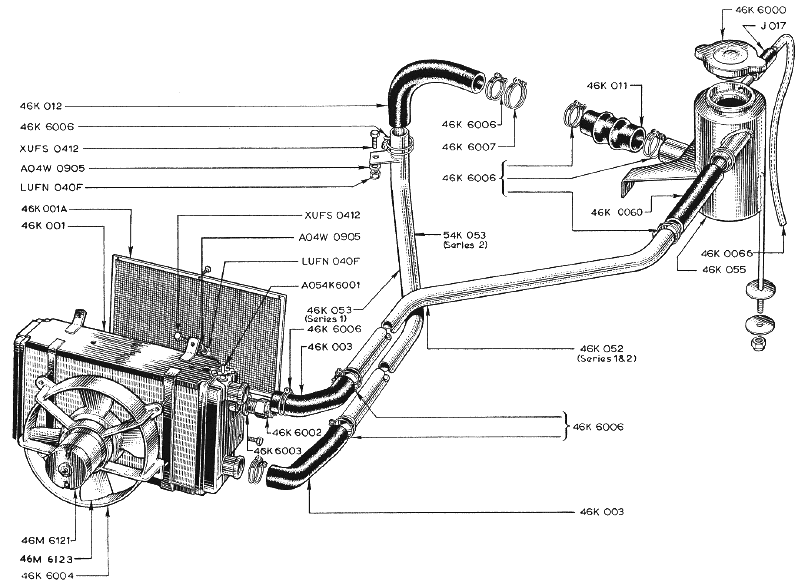

LOTUS EUROPA S1 PARTS MANUALSection K1 -- Cooling -- Radiator and FanLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (140K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46K012 | 46K012 | 1 | 1 | Radiator Hose - Transfer Pipe to Engine | - More Info - | ||||||||
| 46K6006 | 46K6006 | 10 | 10 | Hose Clip - Hose Clamp | |||||||||
| XUFS0412 | XUFS0412 | 2 | 2 | Screw - Transfer Pipe to Chassis and Radiator Top To Body | |||||||||
| A04W0905 | A04W0905 | 1 | 1 | Washer - Transfer Pipe to Chassis | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| LUFN040F | LUFN040F | 1 | 1 | Nut - Transfer Pipe to Chassis | 5/16" x 24 TPI, 1/2" head | ||||||||
| 46K001A | 46K001A | 1 | 1 | Radiator Screen | |||||||||
| 46K001 | 46K001 | 1 | 1 | Radiator | - More Info - | ||||||||
| 46M6121 | 46M6121 | 1 | 1 | Radiator Fan Motor | |||||||||
| 46M6123 | 46M6123 | 1 | 1 | Radiator Fan | |||||||||
| 46K6004 | 46K6004 | 1 | 1 | Radiator Fan Housing | |||||||||
| A04W0905 | A04W0905 | 1 | 1 | Washer - Radiator Top to Body | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| LUFN040F | LUFN040F | 1 | 1 | Nut - Radiator Top to Body | 5/16" x 24 TPI, 1/2" head | ||||||||
| A054K6001 | A054K6001 | 1 | 1 | Bleed Valve | |||||||||
| 46K053 | 46K053 | 1 | 1 | Transfer Pipe - Radiator to Engine | |||||||||
| 46K003 | 46K003 | 2 | 2 | Radiator Hose - Radiator to Transfer Pipe | |||||||||
| 46K6002 | 46K6002 | 1 | 1 | Thermal Switch (replaced by 046K6009) | |||||||||
| 46K6003 | 46K6003 | 1 | 1 | Thermal Switch Washer | |||||||||
| 46K6007 | 46K6007 | 1 | 1 | Hose Clip - Hose Clamp | |||||||||
| 54K053 | 54K053 | 1 | 1 | Transfer Pipe - Radiator to Engine | |||||||||
| 46K052 | 46K052 | 1 | 1 | Transfer Pipe - Swirl-pot to Radiator | |||||||||
| 46K011 | 46K011 | 1 | 1 | Radiator Hose - Engine to Swirl-pot | |||||||||
| 46K0060 | 46K0060 | 1 | 1 | Hose - Swirl Pot to Transfer Pipe | |||||||||
| 46K6000 | 46K6000 | 1 | 1 | Radiator Cap | |||||||||
| 46K0066 | 46K0066 | 1 | 1 | Tube - Overflow | |||||||||
| 46K055 | 46K055 | 1 | 1 | Swirl Pot | - More Info - | ||||||||
| J017 | J017 | 1 | 1 | Sleeve |
