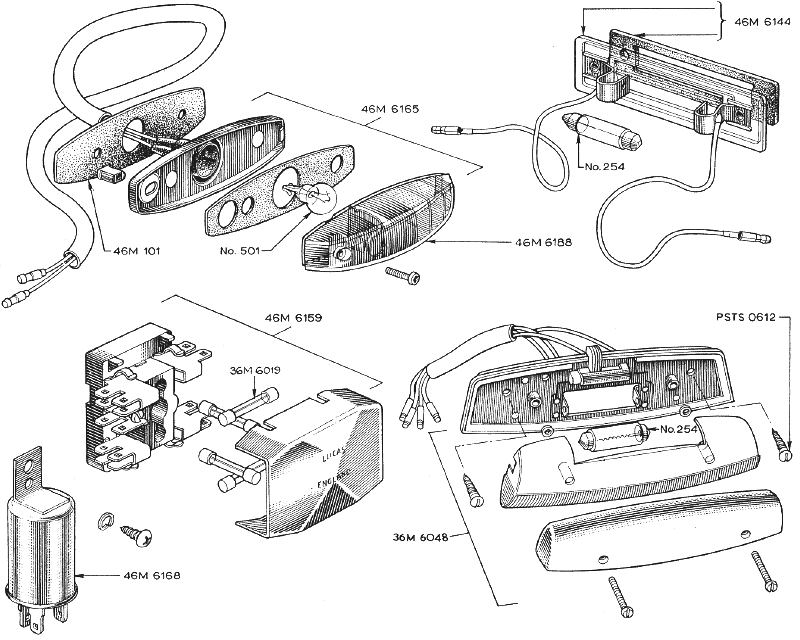

LOTUS EUROPA S1 PARTS MANUALSection M11 -- Electrical -- Marker Lights and Fuse BoxLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (140K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46M6165 | 46M6165 | 2 | 2 | Repeater Flasher | - More Info - | ||||||||
| 46M101 | 46M101 | 2 | 2 | Side Marker Gasket | |||||||||
| No. 501 | No. 501 | 2 | 2 | Bulb (501) | - More Info - | ||||||||
| 46M6188 | 46M6188 | 2 | 2 | Lens - Side Marker | |||||||||
| 46M6159 | 46M6159 | 1 | 1 | Fuse Box | - More Info - | ||||||||
| 36M6109 | 36M6109 | Fuse (As Required) | |||||||||||
| 46M6168 | 46M6168 | 1 | 1 | Flasher unit - Indicators | Up to Chassis No. 0541 | ||||||||
| 46M6144 | 46M6144 | 1 | 1 | Number Plate lamp | |||||||||
| No. 254 | No. 254 | 3 | 3 | Bulb (254) | - More Info - | ||||||||
| PSTS0612 | PSTS0612 | 2 | 2 | Screw | |||||||||
| 36M6048 | 36M6048 | 1 | 1 | Interior Lamp |
