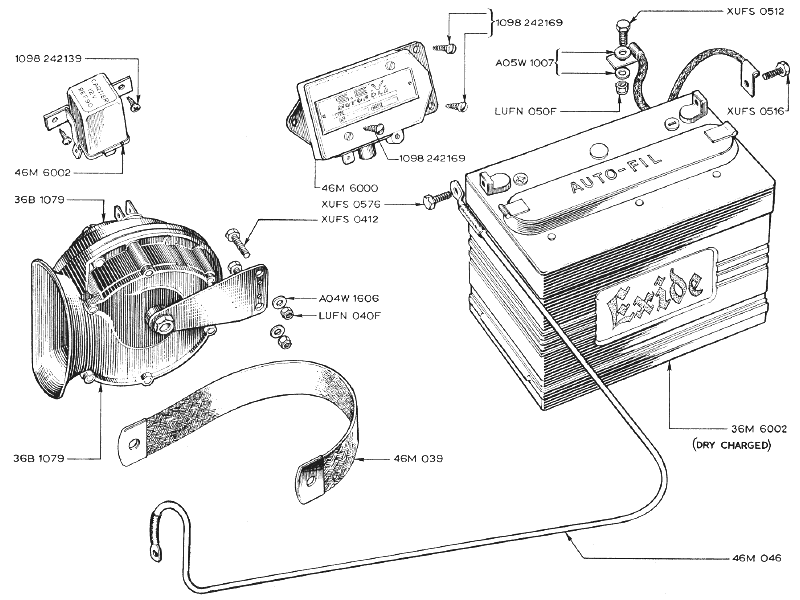

LOTUS EUROPA S1 PARTS MANUALSection M13 -- Electrical -- Battery and HornLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (130K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1098242139 | 1098242139 | 2 | 2 | Screw | |||||||||
| 46M6002 | 46M6002 | 1 | 1 | Radiator Fan Motor Relay | - More Info - | ||||||||
| 36B1079 | 36B1079 | 1 | 1 | Horn - High Note | |||||||||
| 1098242169 | 1098242169 | 3 | 3 | Screw | |||||||||
| 46M6000 | 46M6000 | 1 | 1 | Voltage Regulator | - More Info - | ||||||||
| XUFS0576 | XUFS0576 | 1 | 1 | Bolt - Battery Terminal | |||||||||
| XUFS0412 | XUFS0412 | 2 | 2 | Bolt - Horn Mounting | |||||||||
| A04W1606 | A04W1606 | 2 | 2 | Washer - Horn Mounting | |||||||||
| LUFN040F | LUFN040F | 2 | 2 | Nut - Horn Mounting | 5/16" x 24 TPI, 1/2" head | ||||||||
| 46M039 | 46M039 | 1 | 1 | Ground Strap - Engine to Chassis | |||||||||
| XUFS0512 | XUFS0512 | 1 | 1 | Bolt - Battery Ground Strap to Chassis | 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head | ||||||||
| A05W1007 | A05W1007 | 2 | 2 | Nut - Battery Ground Strap to Chassis | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| LUFN050F | LUFN050F | 1 | 1 | Nut - Battery Ground Strap to Chassis | 5/16" x 24 TPI, 1/2" head | ||||||||
| 36M6002 | 36M6002 | 1 | 1 | Battery | |||||||||
| 46M046 | 46M046 | 1 | 1 | Cable - Battery to Starter | |||||||||
| XUFS0516 | XUFS0516 | 1 | 1 | Bolt - Battery Terminal |
