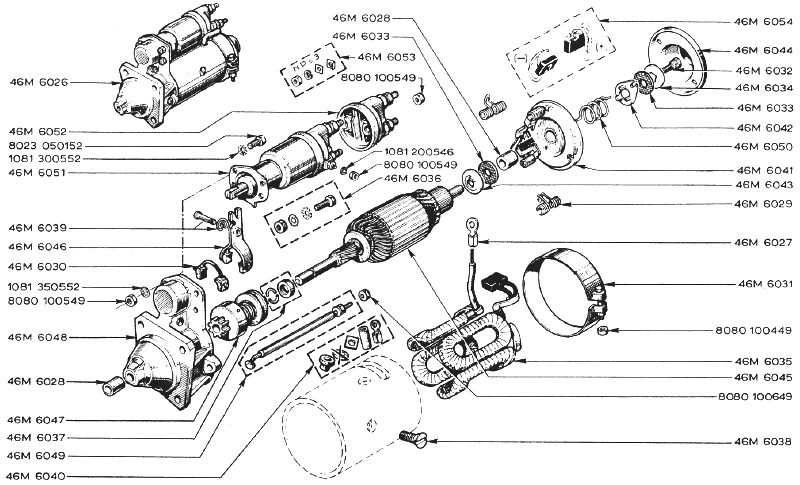

LOTUS EUROPA S1 PARTS MANUALSection M2 -- Electrical -- Starter MotorLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (275K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46M6026 | 46M6026 | 1 | 1 | Starter Motor | - More Info - | ||||||||
| 46M6052 | 46M6052 | 1 | 1 | Solenoid Rear Housing | |||||||||
| 8023050152 | 8023050152 | 4 | 4 | Bolt - Solenoid to Front Housing | |||||||||
| 1081300552 | 1081300552 | 8 | 8 | Washer - Solenoid to Front Housing | |||||||||
| 46M6051 | 46M6051 | 1 | 1 | Solenoid | |||||||||
| 46M6039 | 46M6039 | 1 | 1 | Pin and Clip - Solenoid to Yoke | |||||||||
| 46M6046 | 46M6046 | 1 | 1 | Yoke - Starter Engaging | |||||||||
| 46M6030 | 46M6030 | 1 | 1 | Spring | |||||||||
| 8080100549 | 8080100549 | 5 | 5 | Nut - Solenoid to Front Housing | |||||||||
| 46M6048 | 46M6048 | 1 | 1 | Front Housing | |||||||||
| 46M6028 | 46M6028 | 1 | 1 | Front Stop | |||||||||
| 46M6047 | 46M6047 | 1 | 1 | Gear - Starter to Flywheel Ring Gear | |||||||||
| 46M6037 | 46M6037 | 1 | 1 | Bush and Snap Rings | |||||||||
| 46M6049 | 46M6049 | 2 | 2 | Bolt | |||||||||
| 46M6040 | 46M6040 | 1 | 1 | Terminals and Misc Hardware | |||||||||
| 46M6028 | 46M6028 | 1 | 1 | Spacer | |||||||||
| 46M6033 | 46M6033 | 1 | 1 | Washer | |||||||||
| 46M6053 | 46M6053 | 1 | 1 | Nut and Washers | |||||||||
| 1081200546 | 1081200546 | 1 | 1 | Washer | |||||||||
| 46M6036 | 46M6036 | 1 | 1 | Bolt - Washers and Nut | |||||||||
| 46M6054 | 46M6054 | 2 | 2 | Brushes | |||||||||
| 46M6044 | 46M6044 | 1 | 1 | Rear Housing | |||||||||
| 46M6032 | 46M6032 | 1 | 1 | Armature Rear Support | |||||||||
| 46M6034 | 46M6034 | 1 | 1 | Washer | |||||||||
| 46M6033 | 46M6033 | 1 | 1 | Washer | |||||||||
| 46M6042 | 46M6042 | 1 | 1 | Spring Support Washer | |||||||||
| 46M6050 | 46M6050 | 1 | 1 | Spring | |||||||||
| 46M6041 | 46M6041 | 1 | 1 | Brush Holding Plate | |||||||||
| 46M6043 | 46M6043 | 1 | 1 | Cup Washer | |||||||||
| 46M6029 | 46M6029 | 2 | 2 | Brush Spring | |||||||||
| 46M6027 | 46M6027 | 1 | 1 | Terminal | |||||||||
| 46M6031 | 46M6031 | 1 | 1 | Clamping Band | |||||||||
| 8080100449 | 8080100449 | 1 | 1 | Nut | |||||||||
| 46M6035 | 46M6035 | 1 | 1 | Field Coil | |||||||||
| 46M6045 | 46M6045 | 1 | 1 | Armature | |||||||||
| 8080100649 | 8080100649 | 2 | 2 | Nut | |||||||||
| 46M6036 | 46M6036 | 1 | 1 | Screw |
