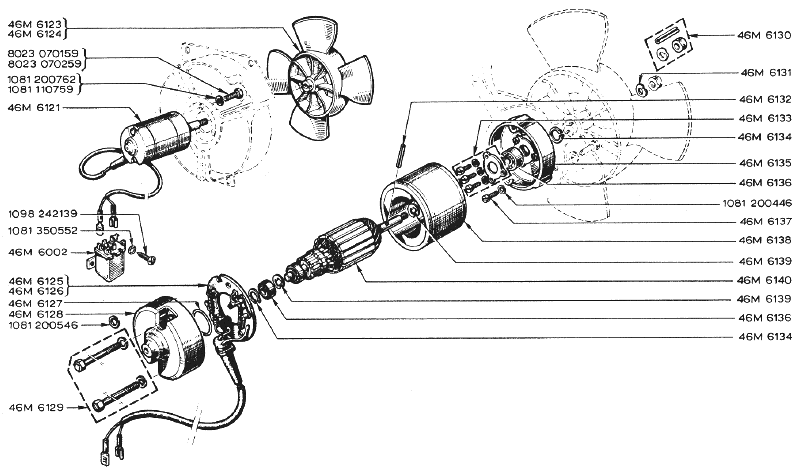

LOTUS EUROPA S1 PARTS MANUALSection M8 -- Electrical -- Radiator FanLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (125K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46M6123 | 46M6123 | 1 | 1 | Heater Fan | |||||||||
| 46M6124 | 46M6124 | 1 | 1 | Heater Fan | |||||||||
| 8023070159 | 8023070159 | 3 | 3 | Bolt | |||||||||
| 8023070259 | 8023070259 | 3 | 3 | Bolt | |||||||||
| 1081200762 | 1081200762 | 3 | 3 | Washer | |||||||||
| 1081110759 | 1081110759 | 3 | 3 | Washer | |||||||||
| 46M6121 | 46M6121 | 1 | 1 | Heater Fan Motor | |||||||||
| 1098242139 | 1098242139 | 2 | 2 | Screw | |||||||||
| 1081350552 | 1081350552 | 2 | 2 | Washer | |||||||||
| 46M6002 | 46M6002 | 1 | 1 | Radiator Fan Motor Relay | - More Info - | ||||||||
| 46M6125 | 46M6125 | 1 | 1 | Brush Carrier | |||||||||
| 46M6126 | 46M6126 | 1 | 1 | Brush Carrier | |||||||||
| 46M6127 | 46M6127 | 1 | 1 | Washer | |||||||||
| 46M6128 | 46M6128 | 1 | 1 | Rear Housing | |||||||||
| 1081200546 | 1081200546 | 2 | 2 | Washer | |||||||||
| 46M6129 | 46M6129 | 2 | 2 | Bolt and Washer | |||||||||
| 46M6130 | 46M6130 | 1 | 1 | Pin and Nut | |||||||||
| 46M6131 | 46M6131 | 1 | 1 | Washer | |||||||||
| 46M6132 | 46M6132 | 1 | 1 | Pin | |||||||||
| 46M6133 | 46M6133 | 3 | 3 | Bearing Retainer with Bolts and Washers | |||||||||
| 46M6134 | 46M6134 | 1 | 1 | Circlip | |||||||||
| 46M6135 | 46M6135 | 1 | 1 | Front Housing | |||||||||
| 46M6136 | 46M6136 | 1 | 1 | Bearing | |||||||||
| 1081200446 | 1081200446 | 1 | 1 | Washer | |||||||||
| 46M6137 | 46M6137 | 1 | 1 | Bolt | |||||||||
| 46M6138 | 46M6138 | 1 | 1 | Stator Coil and Housing | |||||||||
| 46M6139 | 46M6139 | 1 | 1 | Circlip | |||||||||
| 46M6140 | 46M6140 | 1 | 1 | Armature | |||||||||
| 46M6139 | 46M6139 | 1 | 1 | Circlip | |||||||||
| 46M6136 | 46M6136 | 1 | 1 | Bearing | |||||||||
| 46M6134 | 46M6134 | 1 | 1 | Circlip |
