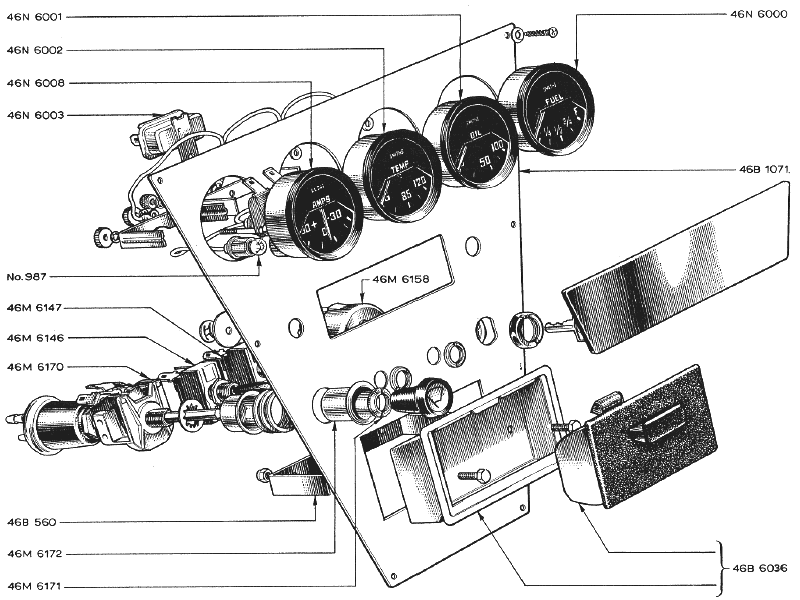

LOTUS EUROPA S1 PARTS MANUALSection N2 -- Dash -- Instruments and SwitchesLotus Europa Central -- Tech Specifications -- S1 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (140K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 46N6001 | 46N6001 | 1 | 1 | Oil Pressure Gauge | - More Info - | ||||||||
| 46N6002 | 46N6002 | 1 | 1 | Gauge - Water Temperature | - More Info - | ||||||||
| 46N6003 | 46N6003 | 1 | 1 | Instrument Stabilizer | - More Info - | ||||||||
| 46N6008 | 46N6008 | 1 | 1 | Gauge - Ammeter | - More Info - | ||||||||
| No. 987 | No. 987 | 4 | 4 | Bulb (987) - Instrument | - More Info - | ||||||||
| 46N6147 | 46N6147 | 1 | 1 | Switch - Radiator and Heater Fan | |||||||||
| 46N6146 | 46N6146 | 1 | 1 | Switch - Lamps | |||||||||
| 46N6170 | 46N6170 | 1 | 1 | Switch - Windscreen Wipers | |||||||||
| 46B560 | 46B560 | 1 | 1 | Bracket - Ash Receptical Mounting | |||||||||
| 46M6172 | 46M6172 | 1 | 1 | Mounting Boss - Windscreen Wiper Switch | |||||||||
| 46M6171 | 46M6171 | 1 | 1 | Nut - Windscreen Wiper Switch | |||||||||
| 46N6000 | 46N6000 | 1 | 1 | Gauge - Fuel | - More Info - | ||||||||
| 46B1071 | 46B1071 | 1 | Instrument Mounting Panel | ||||||||||
| 46B6036 | 46B6036 | 1 | 1 | Ashtray | |||||||||
| 46N6158 | 46N6158 | 1 | 1 | Switch - Ignition |
