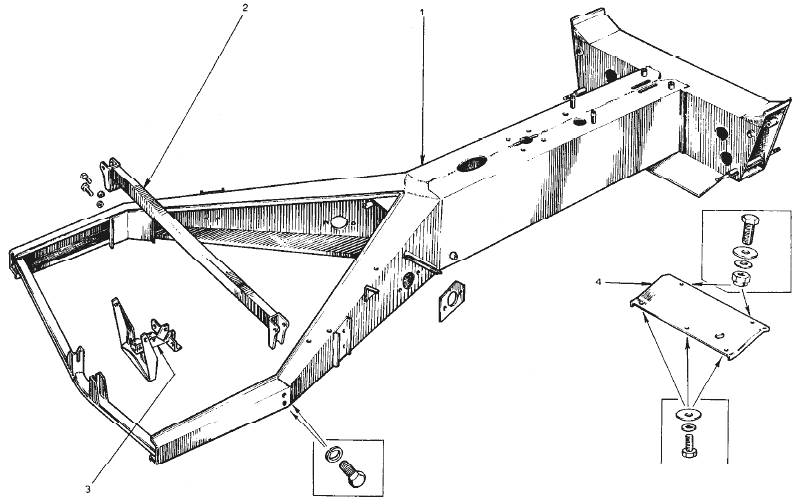

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection AA -- ChassisLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (110K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046A0701 | 1 | 1 | Chassis Frame | - More Info - | ||||||||
| 1 | 054A0701 | 1 | Chassis Frame | - More Info - | |||||||||
| 1 | 054A0701 | 1 | Chassis Frame | - More Info - | |||||||||
| 1 | 046A0702 | 1 | 1 | 1 | 1 | Front Box - Chassis Frame | |||||||
| 1 | 054A0251 | 2 | 2 | Reinforcing Plate | SB - Service III 1969/29 | ||||||||
| 1 | 046A012 | 2 | 2 | 2 | 2 | Fulcrum Pin - Front Wishbone Lower | |||||||
| 1 | 046A0709 | Replaced by 054A0709 | Up to Chassis No. 0050 | ||||||||||
| 1 | A046A0709 | Replaced by 054A0709 | From Chassis No. 0051 to ? | ||||||||||
| 2 | 054A0709 | 1 | 1 | 1 | 1 | Cross Beam | From Chassis No. ? | ||||||
| 2 | XUFB0516 | 4 | 4 | 4 | 4 | Bolt - Cross Beam to Chassis | |||||||
| 2 | YUFN050F | 4 | 4 | 4 | 4 | Nut - Cross Beam to Chassis | |||||||
| 2 | A050W1206 | 4 | 4 | 4 | 4 | Washer - Cross Beam to Chassis | |||||||
| 2 | 046A0157 | Replaced by 054A0157 | |||||||||||
| 3 | 054A0157 | 1 | 1 | 1 | 1 | Lower Link bracket | Up to Chassis No. 1626 | ||||||
| 3 | XUFB0844 | 2 | 2 | 2 | 2 | Bolt - Lower Link Bracket | From Chassis No. 1627 | ||||||
| 4 | 054A0201 | 1 | 1 | Closing Plate - Chassis to Body | |||||||||
| 4 | XUFB0620 | 2 | 2 | Bolt | |||||||||
| 4 | A06W2006 | 2 | 2 | Washer | |||||||||
| 4 | YUFN060F | 2 | 2 | Nut | |||||||||
| 4 | XUFB0408 | 3 | 3 | Bolt | |||||||||
| 4 | L04W0000 | 3 | 3 | Washer | |||||||||
| 4 | A04W0905 | 3 | 3 | Washer | 1/32" thick, 1/2" OD, 1/4" ID | ||||||||
| 5 | 046B1177 | 1 | 1 | Tie Tube LH | |||||||||
| 5 | 046B1178 | 1 | 1 | Tie Tube RH | |||||||||
| 5 | A07W1409 | 2 | 2 | Washer - Tie tube/seat belt mounting | |||||||||
| 5 | 046B6001 | 2 | 2 | Eye Bolt - Tie tube/seat belt mounting | |||||||||
| 5 | A054B1908 | 2 | 2 | Spacer - Inboard Sealt Belt Mounting | |||||||||
| 5 | XUFB0524 | 2 | 2 | Bolt - Tie tube to chassis | |||||||||
| 5 | A05W1007 | 2 | 2 | Washer - Tie tube to chassis | 1/16" thick, 5/8" OD and 9/32" ID | ||||||||
| 5 | LUFN050F | 2 | 2 | Nut - Tie tube to chassis | 5/16" x 24 TPI, 1/2" head |
