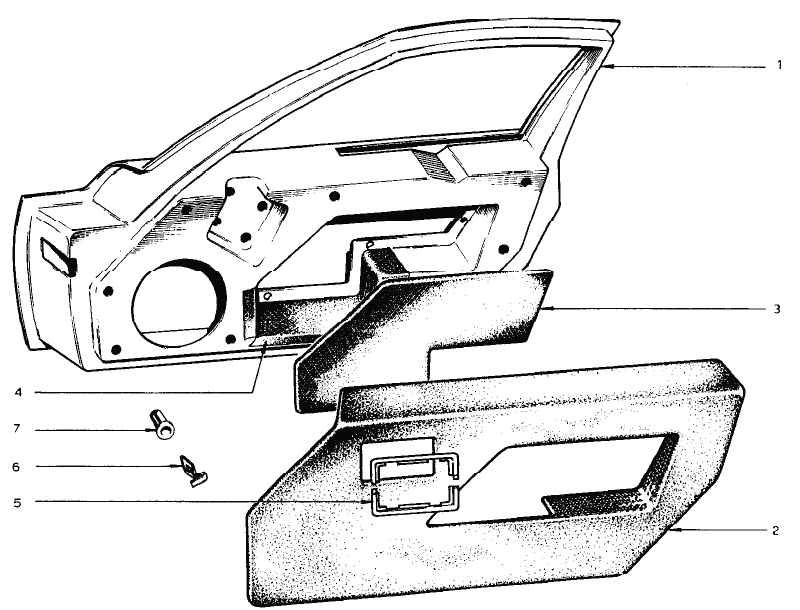

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BH -- Body -- Door Shells and TrimLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (115K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046B0088 | 1 | 1 | Door Shell LH | Up to Chassis No. 0644 | ||||||||
| 1 | 054B0089 | 1 | Door Shell LH | From Chassis No. 0645 to 1065 | |||||||||
| 1 | A054B0089 | 1 | Door Shell LH | From Chassis No. 1066 | |||||||||
| 1 | 046B0089 | 1 | 1 | Door Shell RH | Up to Chassis No. 0644 | ||||||||
| 1 | 054B0088 | 1 | Door Shell RH | From Chassis No. 0645 to 1065 | |||||||||
| 1 | A054B0088 | 1 | Door Shell RH | From Chassis No. 1066 | |||||||||
| 2 | 046B0427 | 2 | 2 | Door Trim Panel | Up to Chassis No. 0644 | ||||||||
| 2 | 054B0721 | 1 | 1 | Door Trim Panel LH | From Chassis No. 0645 | ||||||||
| 2 | 054B0722 | 1 | 1 | Door Trim Panel RH | From Chassis No. 0645 | ||||||||
| 3 | 054B0918 | 1 | 1 | Aperature Panel - Armrest Recess - RH | From Chassis No. 0645 | ||||||||
| 3 | 054B0919 | 1 | 1 | Aperature Panel - Armrest Recess - LH | From Chassis No. 0645 | ||||||||
| 4 | 054B1698 | 2 | 2 | Perforated Trim Material | From Chassis No. 0645 | ||||||||
| 5 | 054B6059 | 2 | 2 | Bezel - Door Handle Remote Control (Inside Door Handle) | - More Info - | ||||||||
| 6 | W0010 | 16 | 16 | Clip - Trim Panel Mounting | - More Info - | ||||||||
| 7 | 046B6037 | 16 | 16 | Snap Sac - Trim Panel Mounting | - More Info - | ||||||||
| 7 | 046B6020 | 2 | 2 | Pocket Trim Strip |
