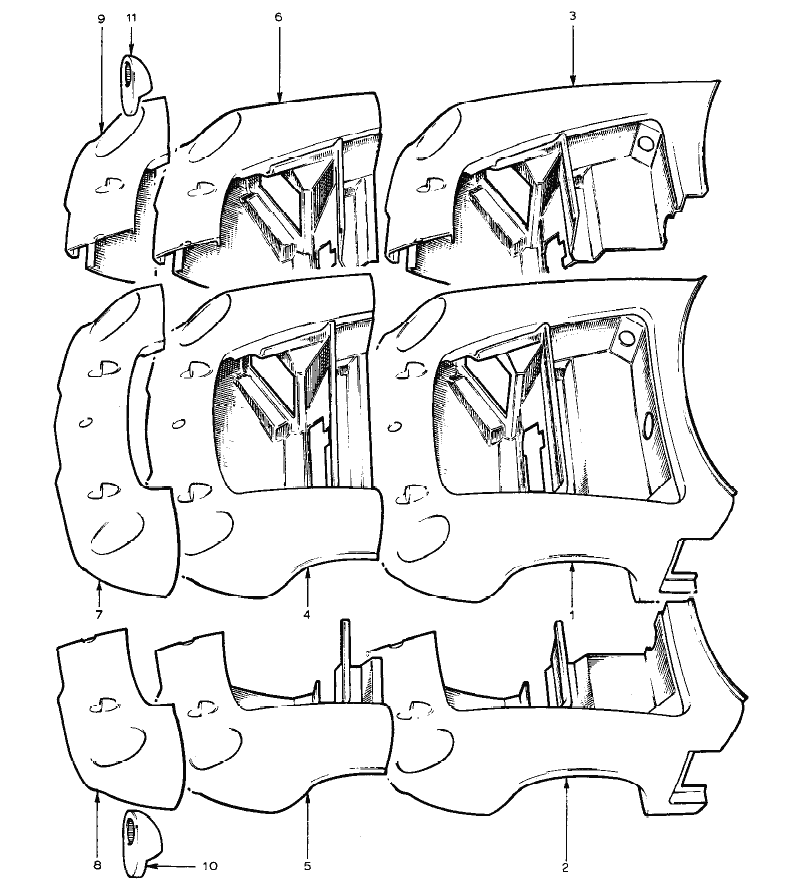

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection BL -- Body -- Replacement Fiberglass Section 1Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (230K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046B6130 | 1 | 1 | Full Front Section | Up to Chassis No. 0644 | ||||||||
| 1 | 054B6040 | 1 | Full Front Section | From Chassis No. 0645 | |||||||||
| 1 | A054B6040 | 1 | Full Front Section | Up to Chassis No. ? | |||||||||
| 1 | 065B6000 | 1 | Full Front Section | From Chassis No. ? | |||||||||
| 2 | 046B6131 | 1 | 1 | Half Full Front Section LH | Up to Chassis No. 0644 | ||||||||
| 2 | 054B6041 | 1 | Half Full Front Section LH | From Chassis No. 0645 | |||||||||
| 2 | A054B6041 | 1 | Half Full Front Section LH | Up to Chassis No. ? | |||||||||
| 2 | 065B6001 | 1 | Half Full Front Section LH | From Chassis No. ? | |||||||||
| 3 | 046B6132 | 1 | 1 | Half Full Front Section RH | Up to Chassis No. 0644 | ||||||||
| 3 | 054B6042 | 1 | Half Full Front Section RH | From Chassis No. 0645 | |||||||||
| 3 | A054B6042 | 1 | Half Full Front Section RH | Up to Chassis No. ? | |||||||||
| 3 | 065B6002 | 1 | Half Full Front Section RH | From Chassis No. ? | |||||||||
| 4 | 046B6127 | 1 | 1 | Mid Full Front Section | Up to Chassis No. 0644 | ||||||||
| 4 | 054B6053 | 1 | Mid Full Front Section | From Chassis No. 0645 | |||||||||
| 4 | A054B6053 | 1 | Mid Full Front Section | Up to Chassis No. ? | |||||||||
| 4 | 065B6003 | 1 | Mid Full Front Section | From Chassis No. ? | |||||||||
| 5 | 046B6129 | 1 | 1 | Half Mid Front Section LH | Up to Chassis No. 0644 | ||||||||
| 5 | 054B6054 | 1 | Half Mid Front Section LH | From Chassis No. 0645 | |||||||||
| 5 | A054B6054 | 1 | Half Mid Front Section LH | Up to Chassis No. ? | |||||||||
| 5 | 065B6005 | 1 | Half Mid Front Section LH | From Chassis No. ? | |||||||||
| 6 | 046B6128 | 1 | 1 | Half Mid Front Section RH | Up to Chassis No. 0644 | ||||||||
| 6 | 054B6055 | 1 | Half Mid Front Section RH | From Chassis No. 0645 | |||||||||
| 6 | A054B6055 | 1 | Half Mid Front Section RH | Up to Chassis No. ? | |||||||||
| 6 | 065B6006 | 1 | Half Mid Front Section RH | From Chassis No. ? | |||||||||
| 7 | 046B6104 | 1 | 1 | Short Nose Section | Up to Chassis No. 0644 | ||||||||
| 7 | 054B6056 | 1 | Short Nose Section | From Chassis No. 0645 | |||||||||
| 7 | A054B6056 | 1 | Short Nose Section | Up to Chassis No. ? | |||||||||
| 7 | 65B6004 | 1 | Short Nose Section | From Chassis No. ? | |||||||||
| 8 | 046B6097 | 1 | 1 | Half Short Nose LH | Up to Chassis No. 0644 | ||||||||
| 8 | 054B6057 | 1 | Half Short Nose LH | From Chassis No. 0645 | |||||||||
| 8 | A054B6057 | 1 | Half Short Front LH | Up to Chassis No. ? | |||||||||
| 8 | 065B6007 | 1 | Half Short Front LH | From Chassis No. ? | |||||||||
| 9 | 046B6096 | 1 | 1 | Half Short Front RH | Up to Chassis No. 0644 | ||||||||
| 9 | 054B6068 | 1 | Half Short Front RH | From Chassis No. 0645 | |||||||||
| 9 | A054B6068 | 1 | Half Short Front RH | Up to Chassis No. ? | |||||||||
| 9 | 065B6008 | 1 | Half Short Front RH | From Chassis No. ? | |||||||||
| 10 | 054B0933 | 1 | Headlamp Pod LH | From Chassis No. 1450 to 2061 | |||||||||
| 10 | A054B0933 | 1 | Headlamp Pod LH | From Chassis No. 2067 | |||||||||
| 11 | 054B0934 | 1 | Headlamp Pod RH | From Chassis No. 1450 |
