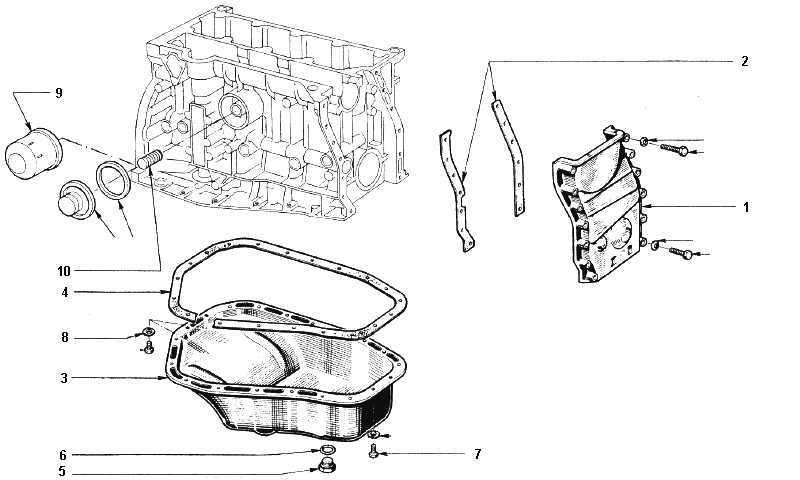

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EB -- Engine -- Oil Sump and Timing CoversLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (110K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6056 | 1 | 1 | 1 | Timing Cover (R9210) | ||||||||
| 1 | A054E6052 | 1 | Timing Cover (R9211) | ||||||||||
| 1 | A054E6053 | 10 | 10 | 10 | Timing Cover to Cylinder Block Bolt | ||||||||
| 1 | A054E6054 | 13 | Timing Cover to Cylinder Block Bolt | ||||||||||
| 1 | A054E6055 | 3 | 3 | 3 | Timing Cover to Cylinder Block Bolt | ||||||||
| 1 | A046W6047 | 13 | 13 | 13 | 13 | Timing Cover to Cylinder Block Washer | |||||||
| 2 | 046E6055 | 1 | 1 | 1 | 1 | Timing Cover Gasket (pair) | |||||||
| 2 | A046E6055 | 1 | 1 | 1 | 1 | Timing Cover Gasket (pair) | |||||||
| 3 | 046E6049 | 1 | 1 | 1 | 1 | Oil Sump | |||||||
| 4 | 046E6047 | 1 | 1 | 1 | 1 | Oil Sump Gasket | - More Info - | ||||||
| 5 | A046E6051 | 1 | 1 | 1 | 1 | Oil Sump Drain Plug | |||||||
| 6 | 046E6050 | 1 | 1 | 1 | 1 | Oil Sump Drain Plug Sealing Ring | |||||||
| 7 | A046W6000 | 20 | 20 | 20 | 20 | Oil Sump to Cylinder Block Bolt | |||||||
| 8 | 046E6048 | 20 | 20 | 20 | 20 | Oil Sump to Cylinder Block Lock Washer | |||||||
| 9 | 046E6052 | 1 | 1 | 1 | 1 | Oil Filter Element | - More Info - | ||||||
| 10 | A046E6046 | 1 | 1 | 1 | 1 | Adaptor |
