LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EH -- Engine -- Carburettor OverviewLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (225K) |

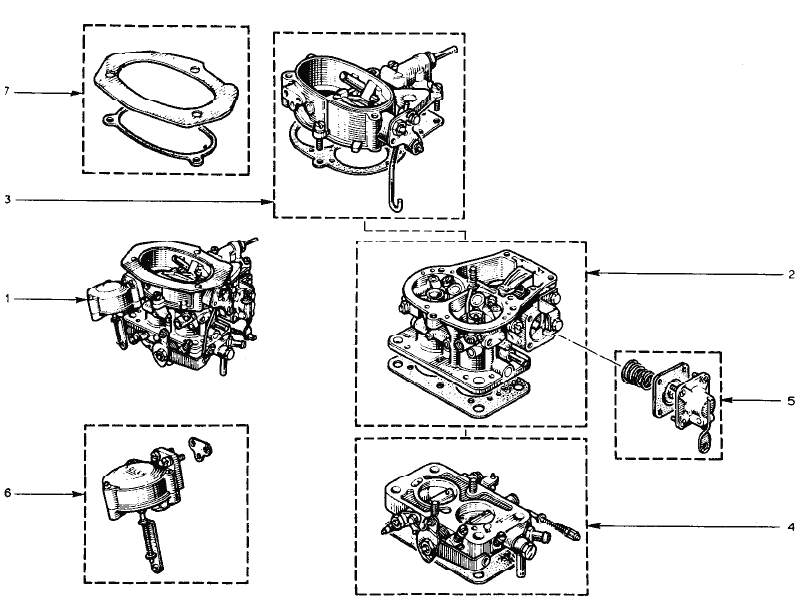

 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6159 | 1 | 383 Carburettor - Replaced by 046E6464 | Up to Eng. No. 0044 | |||||||||
| 1 | 046E6404 | 1 | 383 Carburettor - Replaced by 046E646 | Up to Eng. No. 0044 | |||||||||
| 1 | 046E6426 | 1 | 402 Carburettor | From Eng. No. 0045 to 250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 1 | 046E6427 | 1 | 1 | 402/2 Carburettor - Replaced by 046E6430 | From Eng. No. 0251 to 391 including 207 - 219 - 242 - 245 - 249 | ||||||||
| 1 | 046E6428 | 1 | 402/3 Carburettor | From Eng. No. 391 | |||||||||
| 1 | 046E6429 | 1 | 1 | 415 Carburettor Without Electric Cutout | From Eng. No. 0392 to ? | ||||||||
| 1 | 046E6430 | 1 | 1 | 415 Carburettor With Electric Cutout | From Eng. No. ? | ||||||||
| 1 | 054E6011 | 1 | Carburettor | From Eng. No. 0001 to 0441 | |||||||||
| 1 | 054E6012 | 1 | Carburettor | From Eng. No. 0442 | |||||||||
| 2 | 046E6162 | 1 | Carburettor Body | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 2 | A046E6472 | 1 | 1 | Carburettor Body - Replaced by 046E6474 after exhausting old stock | From Eng. No. 0251 to 0391 | ||||||||
| 2 | A046E6474 | 1 | 1 | Carburettor Body | From Eng. No. 0251 to 0391 | ||||||||
| 2 | A046E6473 | 1 | 1 | Carburettor Body | From Eng. No. 0392 | ||||||||
| 3 | 046E6158 | 1 | Carburettor Cover Assembly Without Choke Control Lever | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 3 | 046E6161 | 1 | 1 | Carburettor Cover Assembly With Choke Control Lever | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | ||||||||
| 3 | A046E6478 | 1 | 1 | Carburettor Cover Assembly With Choke Control Lever - replaced by A046E6477 after exh. old stock | From Eng. No. 0251 to 391 including 207 - 219 - 242 - 245 - 249 | ||||||||
| 3 | A046E6477 | 1 | 1 | Carburettor Cover Assembly With Choke Control Lever | From Eng. No. 0251 to 391 including 207 - 219 - 242 - 245 - 249 | ||||||||
| 3 | A046E6479 | 1 | Carburettor Cover Assembly With Choke Control Lever | From Eng. No. 0392 | |||||||||
| 4 | 046E6164 | 1 | Carburettor Throttle Block - or 046E6476 | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 4 | 046E6405 | 1 | Carburettor Throttle Block - or 046E6476 after exhausting old stock | Up to Eng. No. 0250 excluding 207 - 219 - 242 - 245 - 249 | |||||||||
| 4 | A046E6476 | 1 | 1 | Carburettor Throttle Block | From Eng. No. 0251 to 391 including 207 - 219 - 242 - 245 - 249 | ||||||||
| 4 | A046E6475 | 1 | Carburettor Throttle Block | From Eng. No. 0392 | |||||||||
| 5 | 046E6163 | 1 | 1 | 1 | 1 | Accelerator Pump | |||||||
| 6 | 046E6160 | 1 | 1 | 1 | Vacuum Unit (697-04) | ||||||||
| 6 | A054E6030 | 1 | Vacuum Unit (821-30) | ||||||||||
| 7 | 046E6157 | 1 | 1 | 1 | 1 | Mounting plate |
