LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EM -- Engine -- Air CleanerLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (100K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

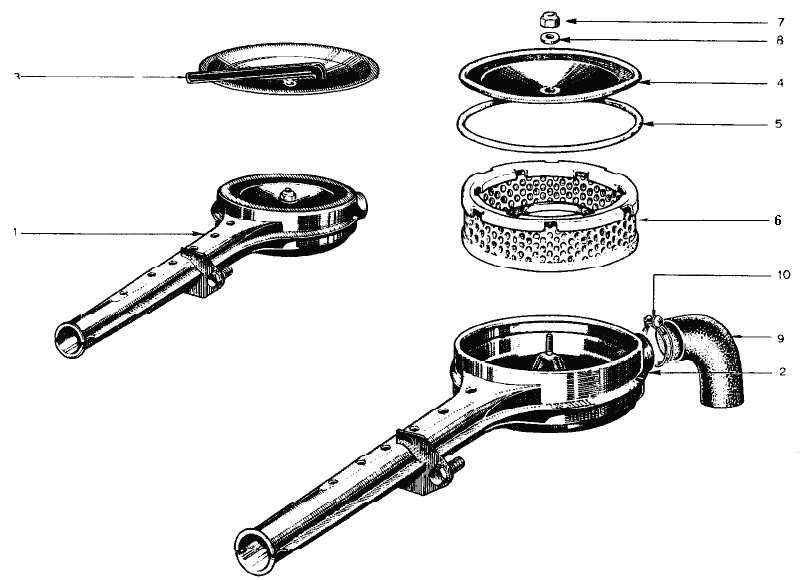

| 1 | 046E6275 | 1 | 1 | 1 | Air Filter Assembly (697-04) | ||||||||
| 1 | 054E6009 | 1 | Air Filter Assembly (821-30) | ||||||||||
| 2 | 046E6280 | 1 | 1 | 1 | 1 | Air Filter Body | |||||||
| 3 | 046E6277 | 1 | 1 | 1 | Cover - Air filter with seal ring (697-04) | ||||||||
| 4 | A046E6277 | 1 | Cover - Air filter with seal ring (821-30) | ||||||||||
| 5 | 046E6278 | 1 | 1 | 1 | 1 | Seal ring | |||||||
| 6 | 046E6279 | 1 | 1 | 1 | 1 | Air filter element | - More Info - | ||||||
| 7 | 046E6452 | 1 | 1 | 1 | 1 | Nut - Cover to body | |||||||
| 8 | A046E6466 | 1 | 1 | 1 | 1 | Washer - Cover to body | |||||||
| 9 | 046E6425 | 1 | 1 | 1 | 1 | Hose - Rocker cover to air filter | |||||||
| 10 | A046E6465 | 1 | 1 | 1 | 1 | Clip |
