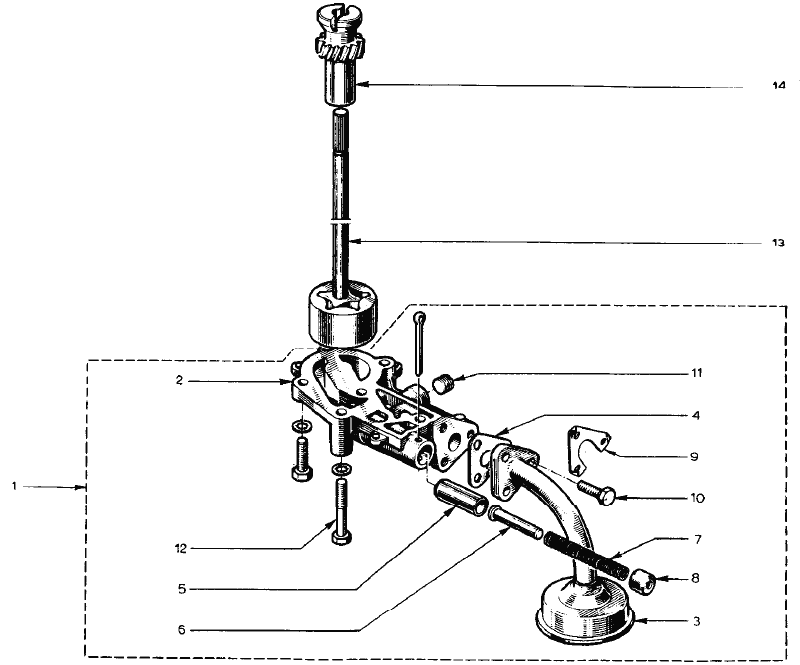

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection EO -- Engine -- Oil PumpLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (80K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046E6368 | 1 | 1 | 1 | 1 | Oil pump body assembly | |||||||
| 2 | 046E6281 | 1 | 1 | 1 | 1 | Body - oil pump | |||||||
| 3 | 046E6291 | 1 | 1 | 1 | 1 | Filter | |||||||
| 4 | 046E6288 | 1 | 1 | 1 | 1 | Joint - filter to body | |||||||
| 5 | 046E6283 | 1 | 1 | 1 | 1 | Oil pressure relief valve sleeve | |||||||
| 6 | 046E6284 | 1 | 1 | 1 | 1 | Oil pressure relief valve | |||||||
| 7 | 046E6289 | 1 | 1 | 1 | 1 | Oil pressure relief spring | |||||||
| 8 | 046E6290 | 1 | 1 | 1 | 1 | Oil pressure relief cap | |||||||
| 8 | A046W6040 | 1 | 1 | 1 | 1 | Split pin - relief valve retaining | |||||||
| 9 | 046E6367 | 1 | 1 | 1 | 1 | Lock tab - Filter to pump body | |||||||
| 10 | 046E6374 | 1 | 1 | 1 | 1 | Bolt - Filter to pump body | |||||||
| 11 | 046E6287 | 1 | 1 | 1 | 1 | Plug | |||||||
| 12 | 046E6282 | 2 | 2 | 2 | 2 | Bolt - pump body to cylinder block | |||||||
| 12 | A046W6039 | 2 | 2 | 2 | 2 | Bolt - pump body to cylinder block | |||||||
| 12 | A046W6037 | 4 | 4 | 4 | 4 | Washer - pump body to cylinder block | |||||||
| 13 | 046E6286 | 1 | 1 | 1 | 1 | Oil pump rotor and shaft | - More Info - | ||||||
| 14 | 046E6372 | 1 | 1 | 1 | 1 | Drive Gear |
