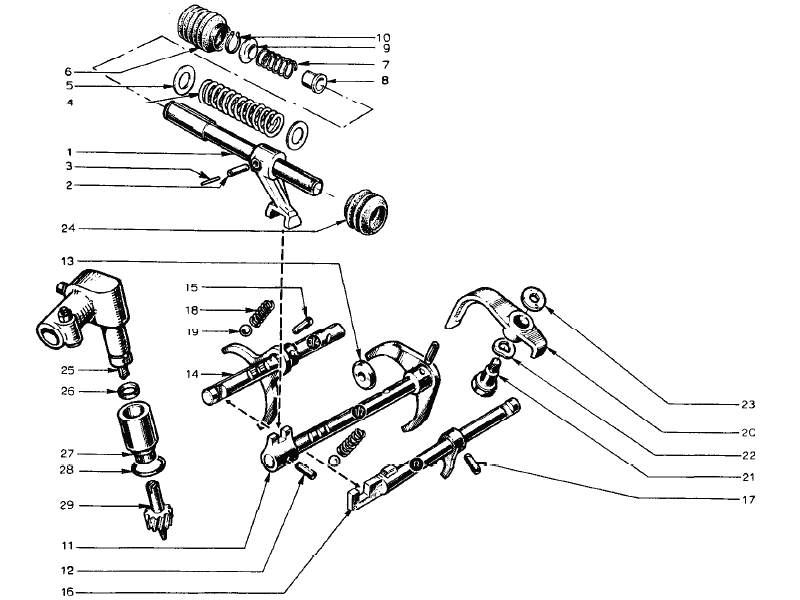

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection FE -- Transmission -- Shift MechanismLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (200K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046F6095 | 1 | 1 | 1 | 1 | Cross Shaft (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 - More Info - | ||||||
| 1 | 054F6005 | 1 | 1 | 1 | 1 | Cross Shaft (697-04) | From Engine No. 0320 including 0283 & 0304 - More Info - | ||||||
| 2 | 046F6096 | 2 | 2 | 2 | 2 | Tension Pin 7 x 25 mm - outer | Up to Engine No. ? | ||||||
| 2 | A046F6096 | 1 | 1 | 1 | 1 | Tension Pin 7 x 25 mm - outer | From Engine No. ? | ||||||
| 3 | 046F6097 | 2 | 2 | 2 | 2 | Tension Pin 7 x 25 mm - inner | |||||||
| 4 | 046F6094 | 1 | 1 | 1 | 1 | Spring (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 | ||||||
| 4 | A046F6094 | 1 | 1 | 1 | 1 | Spring | From Engine No. 0320 including 0283 & 0304 | ||||||
| 5 | 046F6093 | 2 | 2 | 2 | 2 | Washer (697-04) | Up To Engine No. 0319 excluding 0283 & 0304 | ||||||
| 5 | A046F6093 | 1 | 1 | 1 | 1 | Washer | From Engine No. 0320 including 0283 & 0304 | ||||||
| 6 | 046F6092 | 1 | 1 | 1 | 1 | Rubber Boot | |||||||
| 7 | A065F0726 | 1 | 1 | 1 | 1 | Spring - Cross Shaft | From Engine No. ? | ||||||
| 8 | A046F6198 | 1 | 1 | 1 | 1 | Cup - Spring | From Engine No. ? | ||||||
| 9 | A046F6199 | 1 | 1 | 1 | 1 | Abutment - Spring | From Engine No. ? | ||||||
| 10 | 046F6091 | 1 | 1 | 1 | 1 | Circlip - Cross Shaft (697-04) | Up To Engine No. 0319 | ||||||
| 10 | A046F6091 | 1 | 1 | 1 | 1 | Circlip - Cross Shaft | From Engine No. 0320 | ||||||
| 11 | A046F6109 | 1 | 1 | 1 | 1 | Selector Shaft with fork 1st. & 2nd. Speed (Type 336-08) | |||||||
| 11 | C046F6198 | 1 | 1 | 1 | 1 | Selector Shaft with fork 1st. & 2nd. Speed (Type 336-46) | |||||||
| 11 | D046F6109 | 1 | 1 | 1 | 1 | Selector Shaft with fork 1st. & 2nd. Speed (Type 336-56) | |||||||
| 12 | 046F6110 | 1 | 1 | 1 | 1 | Tension Pin 5 x 22 mm. | |||||||
| 13 | 046F6100 | 1 | 1 | 1 | 1 | Disc | |||||||
| 14 | 046F6103 | 1 | 1 | 1 | 1 | Selector Shaft with folk - 3rd. & 4th. Speed | Up to Engine No. 0319 excluding 0283 & 0304 | ||||||
| 14 | A046F6109 | 1 | 1 | 1 | 1 | Selector Shaft with folk - 3rd. & 4th. Speed (Type 336-46) | From Engine No. 0320 | ||||||
| 14 | B046F6109 | 1 | 1 | 1 | 1 | Selector Shaft with folk - 3rd. & 4th. Speed (Type 336-56) | From Engine No. 0320 | ||||||
| 15 | 046F6099 | 2 | 2 | 2 | 2 | Tension Pin 5 x 20 mm. | |||||||
| 16 | 046F6111 | 1 | 1 | 1 | 1 | Selector Shaft with folk - reverse | Up to Engine No. 0319 excluding 0283 & 0304 | ||||||
| 16 | 054F6006 | 1 | 1 | 1 | 1 | Selector Shaft with folk - reverse | From Engine No. 0319 including 0283 & 0304 | ||||||
| 16 | 054F6007 | 1 | 1 | 1 | 1 | Selector Shaft with folk - reverse (Type 336-08 - 336-26 & 336-46) | |||||||
| 17 | 046F6123 | 1 | 1 | 1 | 1 | Tension Pin | |||||||
| 18 | 046F6101 | 2 | 2 | 2 | 2 | Spring - Selector Ball (Type 336-08 - 336-26 & 336-46) | |||||||
| 18 | A046F6101 | 2 | 2 | 2 | 2 | Spring - Selector Ball (Type 336-56) | |||||||
| 19 | 046F6030 | 2 | 2 | 2 | 2 | Ball - 8 mm. Selector | |||||||
| 19 | A046F6030 | 2 | 2 | 2 | 2 | Ball - 10 mm. Selector | |||||||
| 20 | 046F6120 | 1 | 1 | 1 | 1 | Selector Bracket | |||||||
| 21 | 046F6122 | 1 | 1 | 1 | 1 | Bolt - Selector Fixing | |||||||
| 22 | 046F6121 | 1 | 1 | 1 | 1 | Washer - Selector Fixing | |||||||
| 23 | 046F6119 | 1 | 1 | 1 | 1 | Spacer Washer - Selector Fixing | |||||||
| 24 | 046F6098 | 1 | 1 | 1 | 1 | Rubber Boot | |||||||
| 25 | 046F6104 | 1 | 1 | 1 | 1 | Speedometer Angle Drive | |||||||
| 26 | 046F6105 | 1 | 1 | 1 | 1 | Speedometer Drive Seal Ring | |||||||
| 27 | 046F6106 | 1 | 1 | 1 | 1 | Speedometer Drive Gear Guide | |||||||
| 28 | 046F6107 | 1 | 1 | 1 | 1 | Speedometer Drive Gear Guide to Gearbox O Ring | |||||||
| 29 | 046F6108 | 1 | 1 | 1 | 1 | Speedometer Drive Gear |
