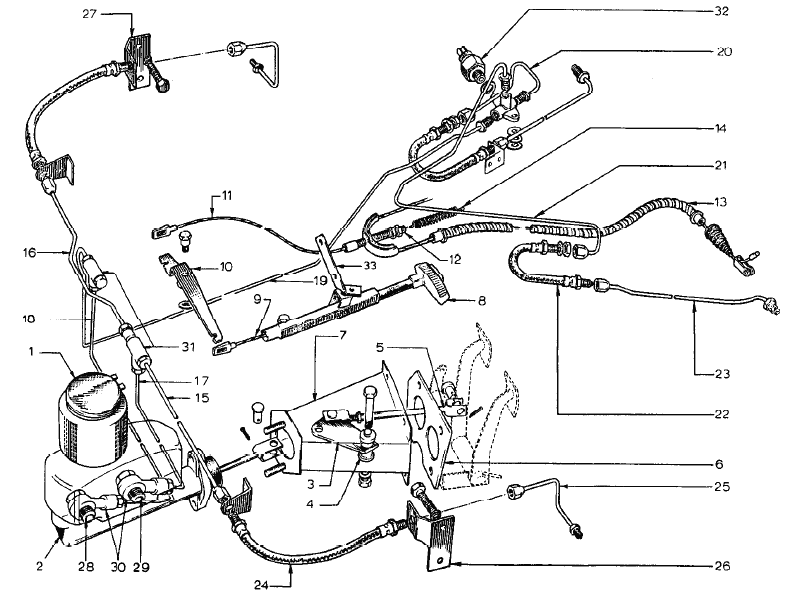

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection JB -- Brakes -- Non-Servo AssistedLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (350K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 036J6069 | 1 | Sovy Device including canister | Up to Chassis No. 2089 | |||||||||
| 1 | 054J0741 | 1 | Sovy Device including canister | From Chassis No. 2090 | |||||||||
| 1 | 054J0742 | 1 | Sovy Device | From Chassis No. 2090 | |||||||||
| 1 | 065J0140 | 1 | Canister | From Chassis No. 2090 | |||||||||
| 2 | 054J6008 | 1 | Master Cylinder (Tandem) | Sleeving | |||||||||
| 2 | 054J6019 | Repair Kit - Master Cylinder (As Required) | |||||||||||
| 3 | 054J0114 | 1 | Relay Lever | ||||||||||
| 4 | 046J6163 | 2 | Bushing - Relay Lever Mounting | ||||||||||
| 4 | W0019 | 1 | Bushing - Relay Lever Mounting | ||||||||||
| 4 | XUFN0436 | 1 | Bolt - Relay Lever Mounting | ||||||||||
| 4 | YUFN040F | 1 | Nut - Relay Lever Mounting | ||||||||||
| 4 | A046J0904 ? | 1 | Washer - Relay Lever Mounting | ||||||||||
| 4 | 430B | 1 | Clevis Pin - Master Cylinder Push Rod to Relay Lever | ||||||||||
| 5 | 415 | 1 | Split Pin - Master Cylinder Push Rod to Relay Lever | ||||||||||
| 5 | 054J0729 | 1 | Adjustable Link - Brake Pedal to Relay Lever | ||||||||||
| 5 | 430B | 1 | Clevis Pin - Push Rod to Pedal | ||||||||||
| 5 | 026J6098 (415) | 1 | Split Pin - Push Rod to Pedal | ||||||||||
| 5 | W0084 | 1 | Clevis Pin - Push Rod to Relay Lever | ||||||||||
| 5 | 415 | 1 | Split Pin - Push Rod to Relay Lever | ||||||||||
| 6 | 054J0122 | 1 | Tapping Plate - Master Cylinder Mounting | ||||||||||
| 7 | 054J0115 | 1 | Mounting Bracket - Master Cylinder Mounting | ||||||||||
| 7 | XUFB0510 | 4 | Bolt - Master Cylinder Mounting | ||||||||||
| 7 | L05W0000 | 4 | Washer - Master Cylinder Mounting | 7/64" thick split washer, 19/32" OD, 5/16" ID | |||||||||
| 7 | YUFN050F | 2 | Nut - Master Cylinder to Mounting Bracket | ||||||||||
| 7 | A05W1606 | 2 | Washer - Master Cylinder to Mounting Bracket | 3/32" thick, 7/8" OD, 13/32" ID | |||||||||
| 8 | A026J0705 | 1 | 1 | + | Handbrake Lever Assembly | ||||||||
| 9 | 046J0067 | 1 | 1 | 1 | 1 | Handbrake Cable - Lever to Multiplier | |||||||
| 10 | 046J0057 | 1 | 1 | 1 | 1 | + | Multiplier | ||||||
| 10 | 046J0058 | 1 | 1 | 1 | 1 | + | Multiplier | ||||||
| 10 | 046J0074 | 1 | 1 | 1 | 1 | Pivot Bolt - Multiplier to Chassis | |||||||
| 10 | W0078 | 1 | 1 | 1 | 1 | Washer - Multiplier to Chassis | |||||||
| 11 | 046J0068 | 1 | 1 | 1 | 1 | Handbrake Cable - Intermediate | |||||||
| 12 | 046J6028 | 1 | 1 | 1 | 1 | Compensator Assembly | |||||||
| 13 | 046J0069 | 1 | 1 | 1 | 1 | Handbrake Cable - Rear | |||||||
| 14 | A046J0016 | 1 | 1 | 1 | 1 | Return Spring | |||||||
| 15 | 054J6036 | 1 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose - Front LH | |||||||
| 16 | 054J6035 | 1 | 1 | 1 | 1 | Bundy Pipe - Union to Flexible Hose - Front RH | |||||||
| 17 | 054J6015 | 1 | 1 | 1 | 1 | Bundy Pipe - Master Cylinder to Union (Front Brakes) | |||||||
| 18 | 054J6016 | 1 | 1 | 1 | 1 | Bundy Pipe - Master Cylinder to Union (Rear Brakes) | |||||||
| 18 | 054J6009 | 1 | Bundy Pipe - Master Cylinder to Rear Union | ||||||||||
| 19 | 054J6006 | 1 | 1 | Bundy Pipe - Front union to Rear Union | |||||||||
| 20 | 046J6045 | 1 | 1 | 1 | 1 | Bundy Pipe - Rear Union to Flexible Hose - Rear RH | |||||||
| 21 | 046J6043 | 1 | 1 | 1 | 1 | Bundy Pipe - Rear Union to Flexible Hose - Rear LH | |||||||
| 22 | 046J6020 | 2 | 2 | 2 | 2 | Flexible Hose - Rear | |||||||
| 22 | AUFN060H | 2 | 2 | 2 | 2 | Nut - Flexible Hose Retaining | |||||||
| 22 | L06W0000 | 2 | 2 | 2 | 2 | Washer - Flexible Hose Retaining | |||||||
| 23 | 046J6042 | 2 | 2 | 2 | 2 | Bundy Pipe - Flexible Hose to Rear Brake | |||||||
| 24 | 046J6016 | 2 | 2 | 2 | 2 | Flexible Hose - Front | |||||||
| 24 | AUFN060H | 2 | 2 | 2 | 2 | Nut - Flexible Hose Retaining | |||||||
| 24 | L06W0000 | 2 | 2 | 2 | 2 | Washer - Flexible Hose Retaining | |||||||
| 25 | 046J6044 | 2 | 2 | 2 | 2 | Bundy Pipe - Flexible Hose to Caliper | |||||||
| 26 | 046J2000 | 1 | 1 | 1 | 1 | Mounting Bracket - Flexible Hose LH | |||||||
| 27 | 046J2001 | 1 | 1 | 1 | 1 | Mounting Bracket - Flexible Hose RH | |||||||
| 28 | 054J6013 | 1 | Banjo Bolt | ||||||||||
| 29 | 054J6012 | 1 | Banjo Bolt | ||||||||||
| 29 | 054J6014 | 2 | Seal Ring | ||||||||||
| 29 | 054J6017 | 2 | Seal Ring | ||||||||||
| 30 | 054J6011 | 2 | Banjo Union | ||||||||||
| 31 | 036J6016 | 1 | Union - 3 way | ||||||||||
| 31 | A054J6036 | 1 | Plug (Federal Cars Only) | ||||||||||
| 31 | 036J6059 | 1 | Washer (Federal Cars Only) | ||||||||||
| 31 | 046J6017 | 1 | 1 | 1 | 1 | Union - 4 Way | Attaches with 7/16 head, 1/4" x 28 TPI, 1" long bolt, & 1/4" x 28 TPI Nyloc nut | ||||||
| 32 | 046J6025 | 1 | 1 | 1 | 1 | Stop Lamp Switch | - More Info - | ||||||
| 32 | 036J6059 | 1 | 1 | 1 | 1 | Seal Ring - Stop Lamp Switch | |||||||
| 33 | 054J0103 | 1 | 1 | 1 | 1 | + | Support Bracket - Handbrake | ||||||
| 33 | XUFS0508 | 2 | 2 | 2 | 2 | Screw - Support Bracket to Body | |||||||
| 33 | A05W1006 | 2 | 2 | 2 | 2 | Washer - Support Bracket to Body | |||||||
| 33 | YUFN050F | 2 | 2 | 2 | 2 | Nut - Support Bracket to Body | |||||||
| 33 | XUFS0508 | 1 | 1 | 1 | 1 | Screw - Handbrake Lever to Support Bracket | |||||||
| 33 | YUFN050F | 1 | 1 | 1 | 1 | Nut - Handbrake Lever to Support Bracket |
