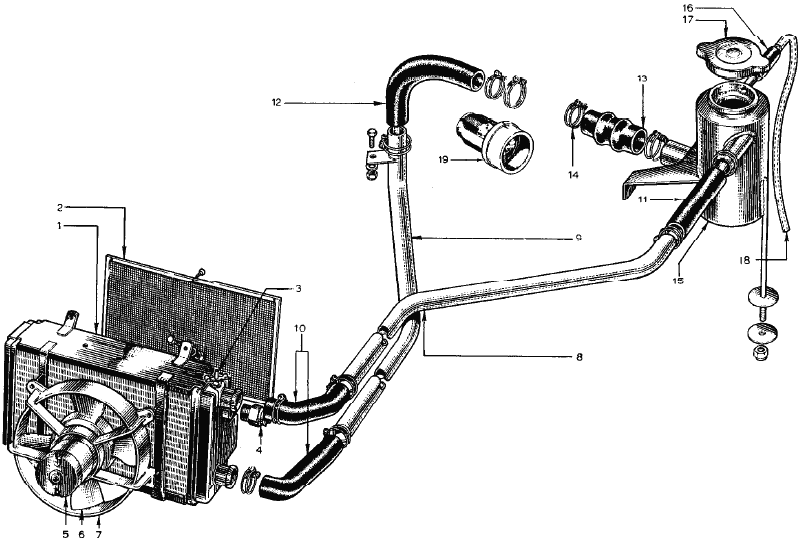

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection KA -- Cooling -- Radiator and FanLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (250K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046K0001 | 1 | 1 | 1 | 1 | Radiator | - More Info - | ||||||
| 1 | XUFS0416 | 1 | 1 | 1 | 1 | Screw - Radiator to Body - Top | |||||||
| 1 | YUFN040F | 1 | 1 | 1 | 1 | Nut - Radiator to Body - Top | |||||||
| 1 | A04W1609 | 1 | 1 | 1 | 1 | Washer - Radiator to Body - Top | |||||||
| 1 | YUFN040F | 2 | 2 | 2 | 2 | Nut - Radiator to Body - Bottom | |||||||
| 1 | A04W1609 | 2 | 2 | 2 | 2 | Washer - Radiator to Body - Bottom | |||||||
| 2 | 046K0001A | 1 | 1 | 1 | 1 | Radiator Screen | |||||||
| 3 | 054K6001 | 1 | 1 | 1 | 1 | Bleed Valve | |||||||
| 3 | 046K6002 | 1 | 1 | 1 | 1 | Thermal Switch (replaced by 046K6009) | From Chassis No. 0920 SB - Service 1968/73 | ||||||
| 4 | 046K6009 | 1 | 1 | 1 | 1 | Thermal Switch | |||||||
| 5 | 046M6121 | 1 | 1 | 1 | 1 | Radiator Fan Motor | |||||||
| 6 | 046M6124 | 1 | 1 | 1 | 1 | Radiator Fan | Up to Chassis No. 7003070113 - excluding 0089 | ||||||
| 6 | A05K6002 | 1 | 1 | 1 | 1 | Radiator Fan | From Chassis No. 7003070114 - excluding 0089 | ||||||
| 6 | 046W6000 | 3 | 3 | 3 | 3 | Bolt - Radiator Fan Motor to Housing | |||||||
| 6 | 046W6074 | 3 | 3 | 3 | 3 | Washer - Radiator Fan Motor to Housing | |||||||
| 7 | 046K6008 | 1 | 1 | 1 | 1 | Housing - Radiator Fan Motor Mounting | |||||||
| 7 | YUFN040F | 4 | 4 | 4 | 4 | Nut - Housing to Radiator | |||||||
| 7 | A04W0904 | 4 | 4 | 4 | 4 | Washer - Housing to Radiator | |||||||
| 8 | 046K0052 | 1 | 1 | 1 | 1 | Transfer Pipe - Swirl-pot to Radiator | |||||||
| 9 | 046K0053 | 1 | 1 | Transfer Pipe - Radiator to Engine | |||||||||
| 9 | 054K0053 | 1 | 1 | Transfer Pipe - Radiator to Engine | |||||||||
| 9 | 046K6001 | 2 | 2 | 2 | 2 | Gromet - Transfer Pipes to Chassis | |||||||
| 9 | XUFS0412 | 1 | 1 | 1 | 1 | Screw - Transfer Pipe to Chassis | |||||||
| 9 | A04W0905 | 1 | 1 | 1 | 1 | Washer - Transfer Pipe to Chassis | 1/32" thick, 1/2" OD, 1/4" ID | ||||||
| 9 | YUFN040F | 1 | 1 | 1 | 1 | Nut - Transfer Pipe to Chassis | |||||||
| 10 | 046K0003 | 2 | 2 | 2 | 2 | Radiator Hose - Radiator to Transfer Pipe | |||||||
| 11 | 046K0600 | 1 | 1 | 1 | 1 | Radiator Hose - Transfer Pipe to Swirl-pot | |||||||
| 12 | 046K0012 | 1 | 1 | 1 | 1 | Radiator Hose - Transfer Pipe to Engine | - More Info - | ||||||
| 13 | 046K0011 | 1 | 1 | 1 | 1 | Radiator Hose - Engine to Swirl-pot | |||||||
| 14 | 046K6006 | 10 | 10 | 10 | 10 | Hose Clip - Hose Clamp | |||||||
| 14 | 050K0075 | 2 | 2 | 2 | 2 | Hose Clip - Hose Clamp | |||||||
| 14 | 046K6007 | 1 | 1 | 1 | 1 | Hose Clip - Hose Clamp | |||||||
| 15 | 046K0055 | 1 | 1 | 1 | 1 | Swirl Pot | - More Info - | ||||||
| 15 | YUFN050F | 1 | 1 | 1 | 1 | Nut - Swirl-pot to Chassis | |||||||
| 15 | A05W1609 | 1 | 1 | 1 | 1 | Washer - Swirl-pot to Chassis | |||||||
| 16 | J017 | 1 | 1 | 1 | 1 | Sleeve | |||||||
| 17 | 046K6000 | 1 | 1 | 1 | 1 | Radiator Cap | |||||||
| 18 | 046K0066 | 1 | 1 | 1 | 1 | Tube - Overflow | |||||||
| 19 | 046E6346 | 1 | 1 | 1 | 1 | Thermostat | - More Info - |
