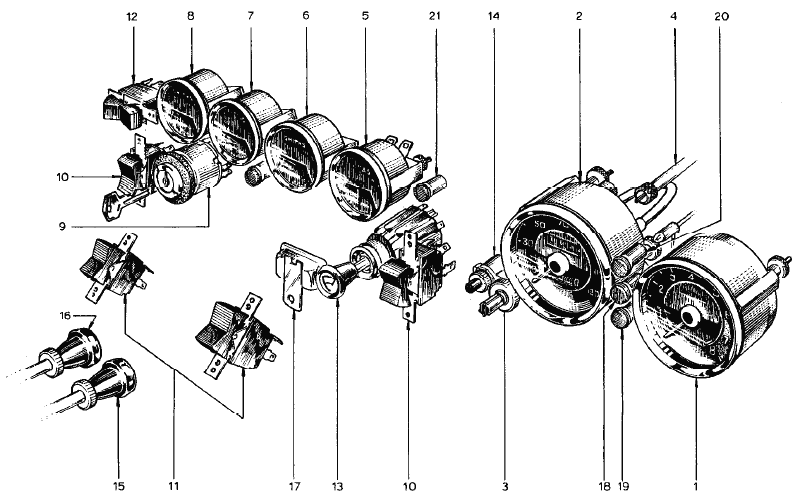

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection ML -- Electrical -- Gauges S2Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (215K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 054N6001 | 1 | 1 | Tachometer | - More Info - | ||||||||
| 2 | 054N6002 | 1 | 1 | Speedometer mph | - More Info - | ||||||||
| 2 | 054N6003 | 1 | + | Speedometer kph | - More Info - | ||||||||
| 3 | 054N6009 | 1 | 1 | Speedometer Trip Cable | |||||||||
| 4 | 046N6007 | 1 | 1 | 1 | 1 | Speedometer Cable | |||||||
| 5 | 054N6004 | 1 | 1 | Ammeter, Amp Gauge | - More Info - | ||||||||
| 6 | 054N6006 | 1 | 1 | Oil Pressure Gauge | - More Info - | ||||||||
| 7 | 054N6005 | 1 | 1 | Gauge - Water Temperature | - More Info - | ||||||||
| 8 | 054N6007 | 1 | 1 | Gauge - Fuel | - More Info - | ||||||||
| 9 | 036B6015 | 1 | Ignition Switch | ||||||||||
| 9 | 036B6015 | 1 | Ignition Switch | Up to Chassis No. ? | |||||||||
| 9 | 050B6155 | 1 | Blank - Ignition Switch Hole | Fron Chassis No. 7001030001R | |||||||||
| 10 | 054M6002 | 2 | 2 | Switch - Heater Fan/Main Lamps | |||||||||
| 11 | 036M6097 | 2 | Switch - Window Lift | ||||||||||
| 11 | 036M6290 | 2 | Switch - Window Lift | ||||||||||
| 12 | 036M6094 | 1 | Switch - Blanking | ||||||||||
| 12 | 036M6095 | 1 | Switch - Hazard Warning - Germany - Italy - Switzerland & Japan) | Up to Chassis No. ? | |||||||||
| 12 | 036M6271 | 1 | 1 | Switch - Hazard Warning - Germany - Italy - Switzerland & Japan) | From Chassis No. ? | ||||||||
| 12 | A036M6336 | 1 | Switch - Hazard Warning | ||||||||||
| 13 | 050M0123 | 1 | 1 | Switch - Wiper/Washer Pump | |||||||||
| 13 | A050M6052 | 1 | 1 | Switch - Wiper/Washer | |||||||||
| 14 | 036M6089 | 1 | Switch - Test - Brake fail Lamp | ||||||||||
| 15 | 054B0038 | 1 | 1 | Choke Cable | |||||||||
| 15 | A054B0038 | 1 | 1 | Choke Cable | |||||||||
| 15 | 054B0037 | 1 | 1 | Cable - Heater | |||||||||
| 16 | A054B0037 | 1 | 1 | Cable - Heater | |||||||||
| 17 | 050M6096 | 1 | 1 | Instrument Stabilizer | - More Info - | ||||||||
| 18 | 036M6278 | 1 | 1 | Warning Lamp - Direction Indicator | |||||||||
| 19 | 036M6277 | 1 | 1 | Warning Lamp - Oil | |||||||||
| 20 | 036M6279 | 1 | 1 | Warning Lamp - High Beam | |||||||||
| 21 | 036M6277 | 1 | Warning Lamp - Hazard | ||||||||||
| 21 | 036M6277 | 1 | Warning Lamp - Hazard | ||||||||||
| 21 | A050M0151 | 1 | Warning Lamp - Hazard | ||||||||||
| 21 | 036M6277 | 1 | Warning Lamp - Brake Fail | ||||||||||
| 21 | 036M6291 | Bulb (987) - Instruments (As Required) | - More Info - | ||||||||||
| 21 | 050H6130 | Bulb (281) - Warning Lamps (As Required) | - More Info - | ||||||||||
| 21 | 036B6144 | 2 | Blanking Plug |
