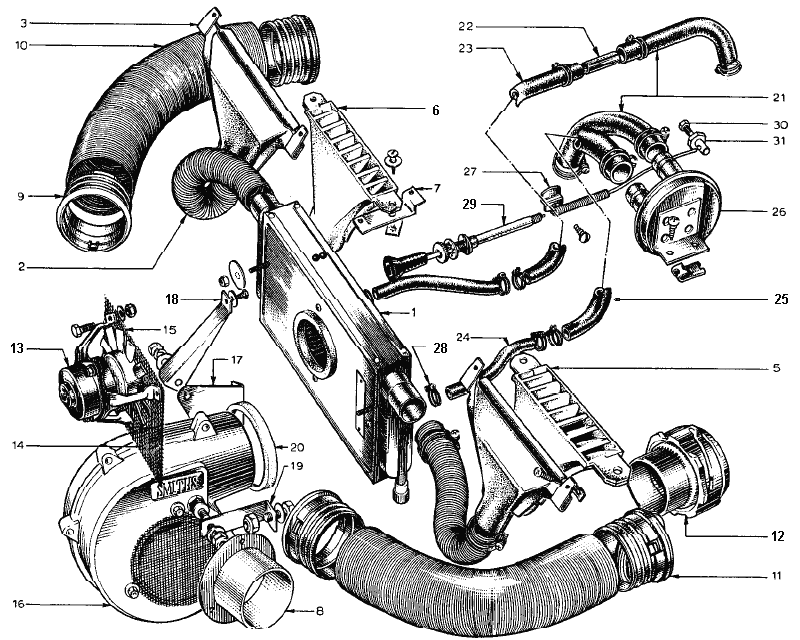

LOTUS EUROPA S1/S2 COMBINED PARTS MANUALSection PA -- Heater -- Demisters and FansLotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (340K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | 046P6002 | 1 | 1 | Heater Unit | |||||||||
| 1 | 054P0706 | 1 | 1 | Heater Unit | |||||||||
| 1 | A03W1606 | 2 | 2 | 2 | 2 | Washer - Heater Unit to Body | |||||||
| 1 | YUFN100F | 2 | 2 | 2 | 2 | Nut - Heater Unit to Body | |||||||
| 2 | 046P6009 | 2 | 2 | 2 | 2 | Hose - Heater to Demist Nozzle | Up to Chassis No. 1456 | ||||||
| 2 | 036P0046 | 2 | 2 | Hose - Heater to Demist Nozzle | From Chassis No. 1457 | ||||||||
| 2 | 046P6010 | 4 | 4 | 4 | 4 | Clip - Demist Nozzle Hose | |||||||
| 3 | 046P6001 | 2 | 2 | 2 | 2 | Demist Nozzle | Up to Chassis No. 1456 | ||||||
| 5 | 050B6047 | 1 | 1 | Demist Nozzle L/H | |||||||||
| 5 | 054P0063 | 1 | 1 | Demist Nozzle L/H | From Chassis No. 1457 | ||||||||
| 6 | 050B6048 | 1 | 1 | Demist Nozzle R/H | |||||||||
| 6 | 054P0064 | 1 | 1 | Demist Nozzle R/H | From Chassis No. 1457 | ||||||||
| 7 | 054P0071 | 4 | 4 | Mounting Bracket - Demist Nozzle | From Chassis No. 1457 | ||||||||
| 7 | PSTS0816 | 4 | 4 | Screw - Demist Nozzle to Mounting Bracket | |||||||||
| 7 | A03W1206 | 4 | 4 | Washer - Demist Nozzle to Mounting Bracket | From Chassis No. 1457 | ||||||||
| 7 | 036B6002 | 4 | 4 | Nut - Demist Nozzle to Mounting Bracket | |||||||||
| 7 | 036B6033 | 8 | 8 | Rivet - Mounting Bracket to Bulkhead | From Chassis No. 1457 | ||||||||
| 8 | 054P0059 | 2 | 2 | Tube - Face Level Vent Connection | |||||||||
| 9 | 046P0032 | 2 | 2 | Tube - Face Level Vent Connection | |||||||||
| 10 | 046P6006 | 2 | 2 | Hose - Face Level Vent | - More Info - | ||||||||
| 10 | 054P0020 | 2 | 2 | Hose - Face Level Vent | |||||||||
| 11 | 046P0030 | 2 | 2 | Face Level Vent | |||||||||
| 12 | 046B6124 | 2 | 2 | Face Level Vent | |||||||||
| 13 | 046M6195 | 1 | 1 | 1 | Heater Motor | ||||||||
| 14 | 046P6000 | 1 | 1 | 1 | Heater Fan Motor | ||||||||
| 15 | 054B1510 | 1 | Grille - Heater Fan Guard | ||||||||||
| 15 | 054B1510 | 2 | Grille - Heater Fan Guard | Up to Chassis No. 1456 | |||||||||
| 15 | XUFB1012 | 3 | 3 | 3 | Bolt - Heater Motor Mounting | ||||||||
| 15 | XUFB1012 | 3 | Bolt - Heater Motor Mounting | Up to Chassis No. 1456 | |||||||||
| 15 | A03W0806 | 3 | 3 | 3 | Washer - Heater Motor Mounting | ||||||||
| 15 | A03W0806 | 3 | Washer - Heater Motor Mounting | Up to Chassis No. 1456 | |||||||||
| 15 | YUFN030F | 3 | 3 | 3 | Nut - Heater Motor Mounting | ||||||||
| 15 | YUFN030F | 3 | Nut - Heater Motor Mounting | Up to Chassis No. 1456 | |||||||||
| 15 | W0050 | 3 | 3 | 3 | Spacer - Heater Motor Mounting | ||||||||
| 15 | W0050 | 3 | Spacer - Heater Motor Mounting | Up to Chassis No. 1456 | |||||||||
| 15 | 046M6205 | Replaced by A054M6082 | |||||||||||
| 16 | A054M6082 | 1 | Heater Motor | ||||||||||
| 17 | 054B1667 | 1 | Mounting Bracket - Heater Motor | From Chassis No. 1457 | |||||||||
| 18 | 054B1786 | 1 | Mounting Bracket - Heater Motor | From Chassis No. 1457 | |||||||||
| 19 | 054B1666 | 1 | Mounting Bracket - Heater Motor | From Chassis No. 1457 | |||||||||
| 19 | PSTS0406 | 1 | Screw - Heater Motor Mounting | ||||||||||
| 19 | A03W0806 | 1 | Washer - Heater Motor Mounting | ||||||||||
| 19 | XUFS0412 | 3 | Screw - Heater Motor Mounting | From Chassis No. 1457 | |||||||||
| 19 | A04W1606 | 3 | Washer - Heater Motor Mounting | ||||||||||
| 19 | YUFN040F | 3 | Nut- Heater Motor Mounting | ||||||||||
| 20 | 026B0373 | 1 | Seal | From Chassis No. 1457 | |||||||||
| 21 | 046P0022 | 2 | 2 | 2 | 2 | Hose | |||||||
| 22 | W049 | 1 | 1 | 1 | 1 | Connector tube | |||||||
| 23 | 046P0006 | 1 | 1 | 1 | 1 | Hose - Connector Tube to Transfer Pipe | |||||||
| 23 | 046P0027 | 2 | 2 | Hose - Transfer Pipe to Heater Unit | |||||||||
| 24 | 054P0057 | 2 | 2 | Hose - Transfer Pipe to Heater Unit | |||||||||
| 25 | 046P0005 | 1 | 1 | 1 | 1 | Hose - Heater Control Valve to Transfer Pipe | |||||||
| 26 | 046P6005 | 1 | 1 | 1 | 1 | Heater Control Valve | - More Info - | ||||||
| 26 | PSTS0812 | 2 | 2 | 2 | 2 | Screw - heater Control Valve Mounting | |||||||
| 26 | 054B6015 | 2 | 2 | 2 | 2 | Nut - heater Control Valve Mounting | |||||||
| 27 | 046P6007 | 1 | 1 | 1 | 1 | Cable Clip - Heater Cable Fixing | |||||||
| 27 | PSTS0812 | 1 | 1 | 1 | 1 | Screw - Heater Cable Fixing | |||||||
| 28 | 046P6011 | 8 | 8 | 8 | 8 | Clip - Hose | |||||||
| 28 | 046P0037 | 1 | 1 | Cable - Heater Control | |||||||||
| 29 | A054B0037 | 1 | 1 | Cable - Heater Control (replaced by B054B0037) | |||||||||
| 29 | B054B0037 | 1 | 1 | Cable - Heater Control | |||||||||
| 30 | A054P0073 | 1 | 1 | 1 | 1 | Screw - Heater Cable to Control Valve | |||||||
| 31 | W0089 | 1 | 1 | 1 | 1 | Nipple - Heater Cable to Control Valve |
