LOTUS EUROPA S1/S2 COMBINED PARTS MANUAL

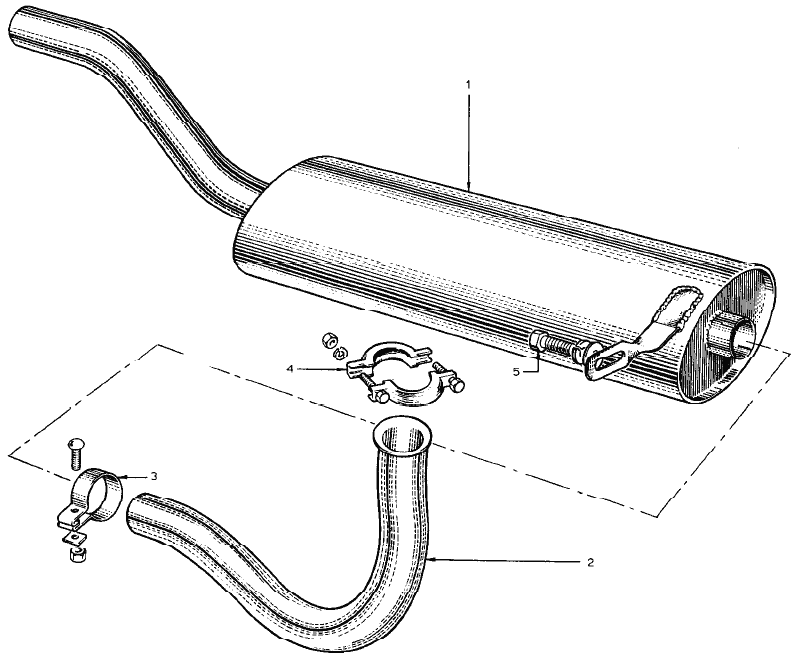

Section SA -- Exhaust -- Silencer and Pipes

Lotus Europa Central -- Tech Specifications -- S1/S2 Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (100K)


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
1 046S0010          Replaced by A046S0010 with 1 of A046S0002 Up to Chassis No. 0148
SB - Service 1967/64
1 046S0093          Replaced by A046S0010 with 1 of A046S0002 SB - Service 1967/64
1 A046S00101 1 1 1       Silencer From Chassis No. 0149 to ?
1 B046S00101 1 1 1       Silencer From Chassis No. ?
1 046S0002          Replaced by A046S0002 Up to Chassis No. 0148
2 A046S00021 1 1 1       Down Pipe From Chassis No. 0149
2 046S01042 2         Clip - Silencer Mounting Up to Chassis No. 0148
3 046S6026  1 1       Clip - Silencer Mounting From Chassis No. 0149
3 046E6400          Replaced by 046E6143
4 046E61431 1 1 1       Half Clamp - Down Pipe to Manifold
4 046E6401          Replaced by 046E6467
4 046E64671 1 1 1       Half Clamp - Down Pipe to Manifold
4 LUFN050F2 2 2 2       Nut - Down Pipe Clamp 5/16" x 24 TPI, 1/2" head
4 A046W60182 2 2 2       Washer - Down Pipe Clamp
4 XUFS05122 2         Bolt - Clamps to Pipes 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
4 A05W10072 2         Washer - Clamps to Pipes 1/16" thick, 5/8" OD and 9/32" ID
4 L05200002 2         Washer - Clamps to Pipes
4 XUFN050F2 2         Nut - Clamps to Pipes
4 046E64602 2 2 2       Screw - Silencer Mounting
4 L05W00002 2 2 2       Washer - Silencer Mounting 7/64" thick split washer, 19/32" OD, 5/16" ID
4 A05W10072 2 2 2       Washer - Silencer Mounting 1/16" thick, 5/8" OD and 9/32" ID
4 XUFS0512  1 1       Bolt - Clamp - Silencer to Down Pipe 3/4" long, all thread, 5/16" x 24 TPI, 1/2" head
4 LUFN050F  1 1       Nut - Clamp - Silencer to Down Pipe 5/16" x 24 TPI, 1/2" head
