LOTUS EUROPA TC/TCS PARTS MANUALSection BK -- Body -- Seat BeltsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (125K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

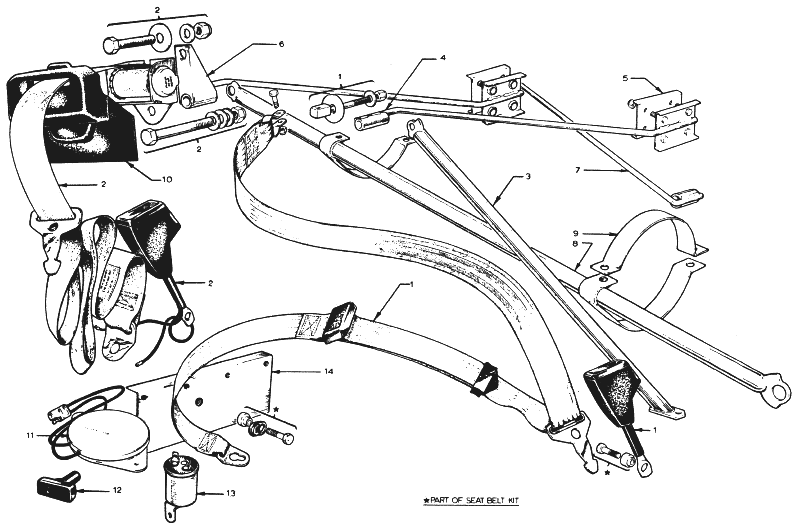

| 1 | A074V6000Z | 2 | 2 | + | + | Kit - Seat belt | |||||||
| 2 | A074V6008Z | 2 | 2 | Kit - Seat belt | |||||||||
| 3 | A074U0016Z | 2 | 2 | + | + | Rod - Tie | |||||||
| 3 | A074U0033Z | 1 | 1 | Strut - Mounting L/H | |||||||||
| 3 | A074U0034Z | 1 | 1 | Strut - Mounting R/H | |||||||||
| 4 | A074U0012Z | 1 | 1 | + | + | Strut R/H | |||||||
| 4 | A074U0013Z | 1 | 1 | + | + | Strut - L/H | |||||||
| 5 | A065B2039Z | 2 | 2 | + | + | Plate - backing | |||||||
| 6 | B074U0035Z | 1 | 1 | Tie - Mounting L/H | |||||||||
| 6 | B074U0036Z | 1 | 1 | Tie - Mounting R/H | |||||||||
| 7 | A074U0031Z | 1 | 1 | Tie - Mounting L/H | |||||||||
| 7 | A074U0032Z | 1 | 1 | Tie - Mounting R/H | |||||||||
| 8 | A074L0718Z | 1 | 1 | Assembly - Catch Tank Support | |||||||||
| 9 | A074U0094Z | 2 | 2 | Strap - Catch Tank Retaining | |||||||||
| 10 | C074V0071Z | 2 | 2 | Cover - Seat Reel | |||||||||
| 11 | A074M6015Z | 1 | 1 | Sensor - Seat Belt Warning | |||||||||
| 12 | A074M6013Z | 1 | 1 | Seat Belt Warning Lamp | |||||||||
| 13 | A036M6423Z | 1 | 1 | Buzzer - Seat Belt Warning | |||||||||
| 14 | C074B2099Z | 1 | 1 | 1 | 1 | Bracket - Lower Seat belt Mounting L/H | |||||||
| 14 | C074B2100Z | 1 | 1 | 1 | 1 | Bracket - Lower Seat belt Mounting R/H |
