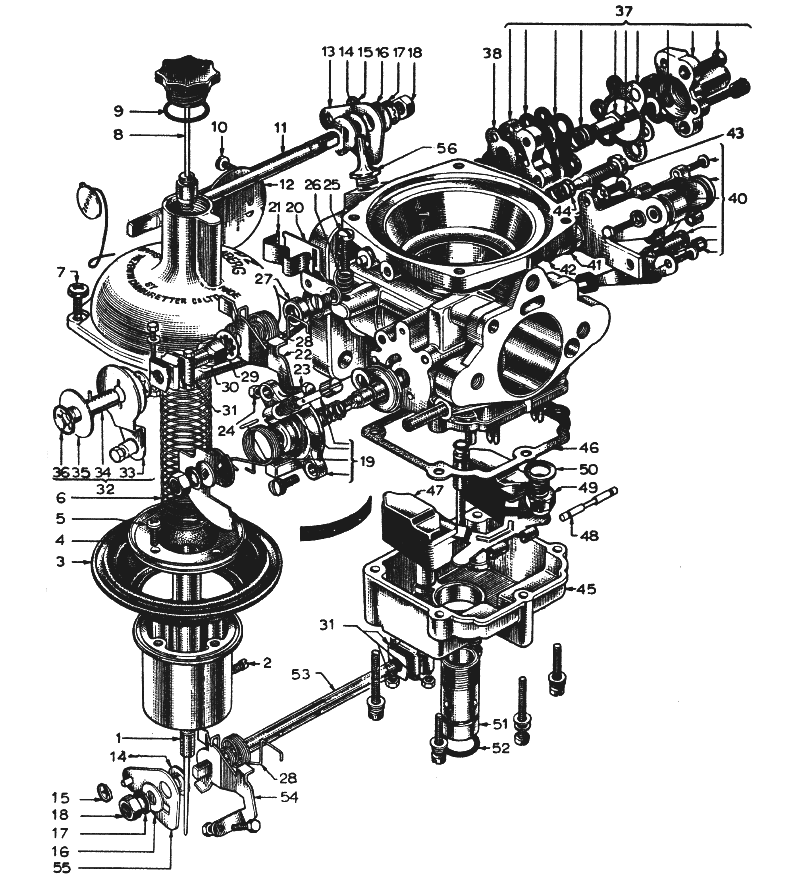

LOTUS EUROPA TC/TCS PARTS MANUALSection EGF -- Engine -- Zenith/Stromberg CarburetorLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (450K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | M026S0710W | 1 | 1 | Carburettor - Front | |||||||||
| 1 | M026S0711W | 1 | 1 | Carburettor - Rear | |||||||||
| 1 | A036S6173Z | 2 | 2 | Needle - Metering (Non-adjustable-B1G) | |||||||||
| 2 | A036S6023Z | 2 | 2 | Screw - Locking | |||||||||
| 3 | A036S6024Z | 2 | 2 | Diaphragm | |||||||||
| 4 | A036S6025Z | 2 | 2 | Retaining Ring | |||||||||
| 5 | A036S6026Z | 8 | 8 | Screw | |||||||||
| 6 | A036S6191Z | 2 | 2 | Spring - Air Valve (light blue) | |||||||||
| 7 | A036S6029Z | 8 | 8 | Screw - Top Retaining - c/w Washer | |||||||||
| 8 | A036S6181W | 2 | 2 | Damper Assembly | |||||||||
| 9 | A036S6192Z | 2 | 2 | O Ring - Damper Assembly | |||||||||
| 10 | A036S6035Z | 4 | 4 | Screw - Throttle Attachment | |||||||||
| 11 | A036S6036Z | 1 | 1 | Throttle Spindle - Front Carb | |||||||||
| 12 | A036S6037Z | 2 | 2 | Throttle | |||||||||
| 13 | A036S6040Z | 1 | 1 | Lever - Floating - Front Carb | |||||||||
| 14 | A036S6041Z | 2 | 2 | Bush | |||||||||
| 15 | A036S6042Z | 2 | 2 | Lockwashher | |||||||||
| 16 | A036S6043Z | 2 | 2 | Washer - Plain | |||||||||
| 17 | A036S6044Z | 2 | 2 | Washer - Shakeproof | |||||||||
| 18 | A036S6045Z | 2 | 2 | Nut | |||||||||
| 19 | A036S6187Z | 1 | 1 | Starter Assembly Complete | |||||||||
| 19 | A036S6074Z | 2 | 2 | Screw - Attachment - Starter Assembly | |||||||||
| 19 | A036S6149Z | 2 | 2 | Washer - Shakeproof - Starter Assembly | |||||||||
| 20 | A036S6052Z | 1 | 1 | Bracket - Starter Control - c/w Clip | |||||||||
| 21 | A036S6053Z | 1 | 1 | Clip | |||||||||
| 21 | A036S6054Z | 1 | 1 | Screw - Attachment - Clip | |||||||||
| 22 | A036S6057Z | 1 | 1 | Lever - Throttle - Stop and Fast Idle (front carb) | |||||||||
| 23 | A036S6058Z | 1 | 1 | Screw - Fast Idle | |||||||||
| 24 | A036S6059Z | 1 | 1 | Locknut - Fast Idle | |||||||||
| 25 | A036S6051Z | 2 | 2 | Screw - Throttle Stop | |||||||||
| 26 | A036S6050Z | 2 | 2 | Spring | |||||||||
| 27 | A036S6125Z | 4 | 4 | Seal - Throttle Spindle | |||||||||
| 28 | A036S6056Z | 2 | 2 | Spring - throttle Return | |||||||||
| 29 | A036S6060Z | 1 | 1 | Tabwasher | |||||||||
| 30 | A036S6061Z | 1 | 1 | Nut - Extension | |||||||||
| 31 | A036S6062Z | 2 | 2 | Coupling | |||||||||
| 31 | A036S6157Z | 4 | 4 | Screw - Attaching - Coupling | |||||||||
| 31 | A036S6159Z | 4 | 4 | Washer - Attaching - Coupling | |||||||||
| 31 | A036S6158Z | 4 | 4 | Nut - Attaching - Coupling | |||||||||
| 32 | A036S6068Z | 1 | 1 | Assembly - Coupling Spindle and Throttle Lever - comprising: | |||||||||
| 33 | A036S6063Z | 1 | 1 | Lever - Throttle p/o Assembly - Coupling Spindle and Throttle Lever | |||||||||
| 34 | A036S6065Z | 1 | 1 | Spindle - Coupling p/o Assembly - Coupling Spindle and Throttle Lever | |||||||||
| 35 | A036S6066Z | 2 | 2 | Washer p/o Assembly - Coupling Spindle and Throttle Lever | |||||||||
| 36 | A036S6067Z | 2 | 2 | Washer - Starlock p/o Assembly - Coupling Spindle and Throttle Lever | |||||||||
| 37 | A036S6185W | 1 | 1 | Valve - By-pass | |||||||||
| 38 | A907E6139Z | 1 | 1 | gasket | |||||||||
| 38 | A036S6087Z | 3 | 3 | Screw - Attaching - c/w Washer | |||||||||
| 40 | A036S6186W | 2 | 2 | Temperature Compensator Assembly | |||||||||
| 41 | A036S6123Z | 2 | 2 | Seal | |||||||||
| 42 | A036S6124Z | 2 | 2 | Seal | |||||||||
| 42 | A036S6122Z | 4 | 4 | Screw - Attaching - Seal | |||||||||
| 42 | A036S6141Z | 4 | 4 | Washer - Shakeproof - Seal | |||||||||
| 43 | A036S6113Z | 2 | 2 | Screw - Trimmer | |||||||||
| 44 | A036S6114Z | 2 | 2 | Spring | |||||||||
| 45 | A036S6086X | 2 | 2 | Floatchamber | |||||||||
| 45 | A036S6088Z | 8 | 8 | Screw - Attaching - (long) - c/w Washer - Floatchamber | |||||||||
| 45 | A036S6087Z | 4 | 4 | Screw - Attaching - (short) - c/w Washer - Floatchamber | |||||||||
| 46 | A036S6082Z | 2 | 2 | Gasket | |||||||||
| 47 | A907E6141Z | 2 | 2 | Float Arm Assembly | |||||||||
| 48 | A036S6085Z | 2 | 2 | Pivot | |||||||||
| 49 | A036S6130Z | 2 | 2 | Valve - Needle | |||||||||
| 50 | A036S6083Z | 2 | 2 | Washer - Needle Valve | |||||||||
| 51 | A036S6147Z | 2 | 2 | Plug - Floatchamber - c/w O Ring | |||||||||
| 52 | A036S6090Z | 2 | 2 | O ring | |||||||||
| 53 | A036S6188Z | 1 | 1 | Throttle Spindle - Rear Carb. | |||||||||
| 54 | A036S6189Z | 1 | 1 | Lever - Throttle Stop and Fast Idle (Rear Carb) | |||||||||
| 55 | A036S6190Z | 1 | 1 | Lever - Floating (Rear Carb) | |||||||||
| 56 | A036S6130Z | 2 | 2 | Adaptor - Ignition | |||||||||
| A036S6162Z | Gasket Set - 12,000 miles (20,000 km) ( As required) | ||||||||||||
| A036S6163Z | Gasket Set - 24,000 miles (40,000 km) ( As required) | ||||||||||||
| A036S6164Z | Gasket Set - Carburetters to ( As required) |
