LOTUS EUROPA TC/TCS PARTS MANUALSection FF -- Transmission -- Bell HousingLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (130K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

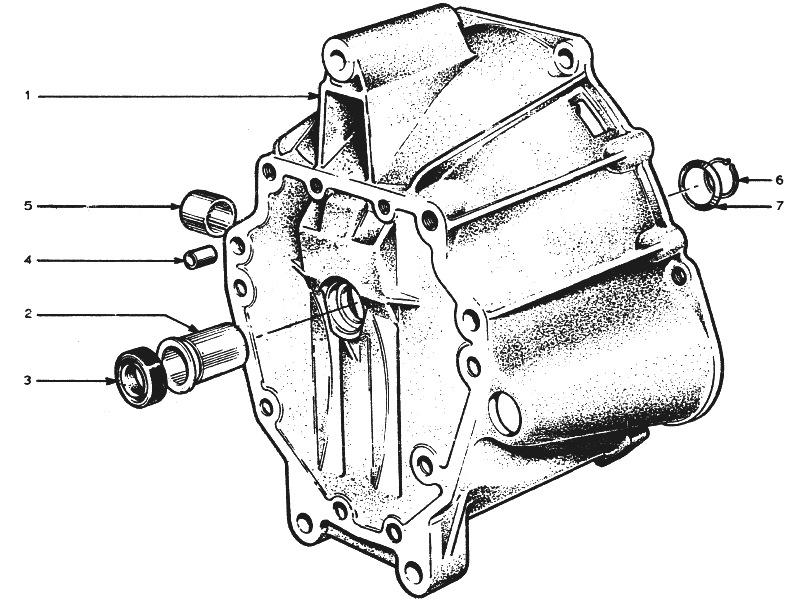

| 1 | A074F0005Y | 1 | 1 | + | + | Bell Housing (336 Gearbox) | |||||||
| 1 | D074F0005Y | 1 | 1 | 1 | 1 | + | + | Bell Housing (352/365 Gearbox) | |||||
| 2 | A074Q6001Z | 1 | 1 | 1 | 1 | Spigot - Release Bearing | |||||||
| 3 | A074Q6005Z | 1 | 1 | 1 | 1 | Seal - Oil | |||||||
| 4 | X046F6023Z | 1 | 1 | 1 | 1 | Bush | |||||||
| 5 | A074F6001Z | 1 | 1 | 1 | 1 | Bush - Cross Shaft | |||||||
| 6 | A074Q6002Z | 1 | 1 | 1 | 1 | Circlip | |||||||
| 7 | A074Q6003Z | 1 | 1 | 1 | 1 | Shim | |||||||
| 7 | A074F6000Z | 1 | 1 | 1 | 1 | Bellhousing to Gearbox Gasket | |||||||
| 7 | XMMB1030 | 2 | 2 | 2 | 2 | Bolt - Bellhousing to Gearbox | |||||||
| 7 | XMMB0825 | 8 | 8 | 8 | 8 | Bolt - Bellhousing to Gearbox | |||||||
| 7 | XMMB1035 | 2 | 2 | 2 | 2 | Bolt - Bellhousing to Gearbox | |||||||
| 7 | ADBW1706 | 8 | 8 | 8 | 8 | Washer - Bellhousing to Gearbox | |||||||
| 7 | A10W2108 | 4 | 4 | 4 | 4 | Washer - Bellhousing to Gearbox |
