LOTUS EUROPA TC/TCS PARTS MANUALSection GA -- WheelsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (110K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||

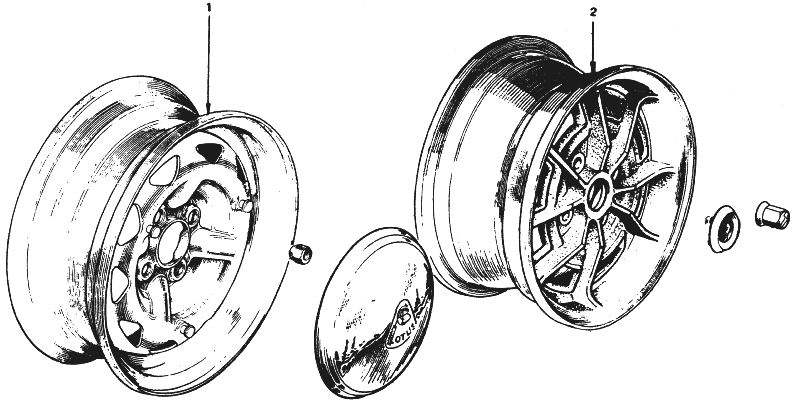

| 1 | B026G0710A | 5 | 5 | 5 | 5 | Assembly - Wheel and Tyre (155 x 13SP) | |||||||
| 1 | X026G0001Z | 5 | 5 | 5 | 5 | Road Wheel | |||||||
| 1 | X036D6000Z | 16 | 16 | 16 | 16 | Wheel Nut | Thread: 3/8-24 | ||||||
| 1 | X026G0002Z | 4 | 4 | 4 | 4 | Hub Cap | |||||||
| 1 | A074G0718W | 2 | 2 | Assembly - Alloy Wheel and Tyre - Rear (Option) | |||||||||
| 1 | A074G0719W | 3 | 3 | Assembly - Alloy Wheel and Tyre - Front & Spare (Option) | |||||||||
| 1 | B074G0718W | 2 | 2 | Assembly - Alloy Wheel and Tyre - Rear (Option) | |||||||||
| 1 | B074G0718W | 3 | 3 | Assembly - Alloy Wheel and Tyre - Front & Spare (Option) | |||||||||
| 2 | A074G0031Z | 5 | 5 | Wheel - Alloy | |||||||||
| 2 | A074G0034Z | 5 | 5 | Wheel - Alloy | |||||||||
| 2 | A074G6000Z | 16 | 16 | 16 | 16 | Wheel Nut - Alloy | Thread: 3/8-24 | ||||||
| 2 | A007G4108Z | 4 | 4 | 4 | 4 | Escutcheon - Wheel c/w Badge | |||||||
| 2 | A074G6003Z | 4 | 4 | 4 | 4 | Escutcheon - Escutcheon - Wheel c/w Badge | |||||||
| 2 | A074G6004Z | 4 | 4 | 4 | 4 | Badge - Escutcheon - Wheel c/w Badge |
