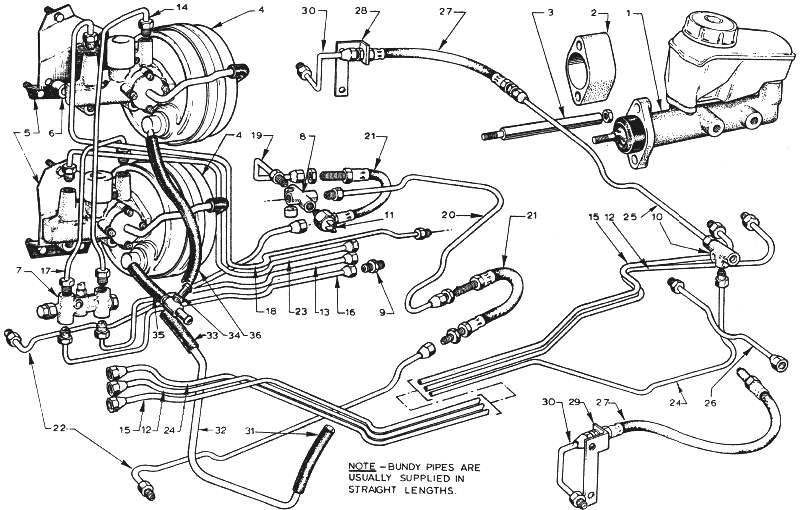

LOTUS EUROPA TC/TCS PARTS MANUALSection JB -- Brakes -- Dual Braking SystemLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (330K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | A074J6033W | 1 | 1 | 1 | 1 | + | Cylinder - Master - c/w Reservoir | ||||||
| 1 | A074J6051W | + | Kit - Reservoir Servicing (As Required) | ||||||||||
| 1 | A074J6052Z | 1 | 1 | 1 | 1 | + | Cap - Filler | ||||||
| 1 | A074J6050W | 1 | 1 | 1 | 1 | + | Kit - Master Cylinder Servicing | ||||||
| 2 | C074J0204Z | 1 | 1 | 1 | 1 | + | Spacer - Master Cylinder | 2 5/32" Thick | |||||
| 3 | A074J0206Z | 1 | 1 | 1 | 1 | + | Adaptor - Push rod | ||||||
| 4 | X036J6085Z | 2 | 2 | 2 | 2 | + | Unit - Brake Servo - Front and Rear | ||||||
| 5 | D036J0162Z | 2 | 2 | 2 | 2 | + | Bracket - Servo Mounting | ||||||
| 6 | A074J0209Z | 3 | 3 | 3 | 3 | + | Spacer - Servo Mounting Bracket - Rear | ||||||
| 7 | X050J6053W | 1 | 1 | 1 | 1 | + | Valve - Pressure Difference Warning (PDWV) | ||||||
| 8 | X046J6017Z | 1 | 1 | 1 | 1 | + | Union - 4 Way | Attaches with 7/16 head, 1/4" x 28 TPI, 1" long bolt, & 1/4" x 28 TPI Nyloc nut | |||||
| 8 | X046J1938Z | 1 | 1 | 1 | 1 | + | Spacer - Union to Chassis | ||||||
| 9 | A050J6085Z | 3 | 3 | 3 | 3 | + | Union - 2 Way | ||||||
| 10 | X036J6016Z | 1 | 1 | 1 | 1 | + | Union - 3 Way | ||||||
| 11 | X046J6025Z | 1 | 1 | 1 | 1 | + | Stop Lamp Switch | - More Info - | |||||
| 11 | X036J6059Z | 1 | 1 | 1 | 1 | + | Seal - Stop Lamp Switch | ||||||
| 12 | A074J6025Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - Master Cylinder to 2 Way Union (Rear Servo System) | ||||||
| 13 | A074J6026Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 2 Way Union to PDWV (Rear Servo System) | ||||||
| 14 | A074J6027Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - PDWV to Rear Unit | ||||||
| 15 | A074J6016Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - Master cylinder to 2 Way Union (Front Servo System) | ||||||
| 16 | A074K6017Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 2 Way Union to PDWV | ||||||
| 17 | A074J6018Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - PDWV to Front Servo Unit | ||||||
| 18 | A074J6034Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - Rear Servo Unit to 4 Way Unit | ||||||
| 19 | A074J6030Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 4 Way Union to L/H rear Flexible Hose | ||||||
| 20 | A074J6031Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 4 Way Union to R/H rear Flexible Hose | ||||||
| 21 | X046J6020Z | 2 | 2 | 2 | 2 | + | Hose - Flexible - Rear | ||||||
| 22 | A074J6032Z | 2 | 2 | 2 | 2 | + | Pipe - Bundy - Flexible Hose to Brake Drums | ||||||
| 23 | A074J6035Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - Front Servo Unit to 2 Way Union | ||||||
| 24 | A074J6025Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 2 Way Union to 3 Way Union | ||||||
| 25 | A074J6023Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 3 Way Union to L/H Front Flexible Hose | ||||||
| 26 | A074J6024Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - 3 Way Union to R/H Front Flexible Hose | ||||||
| 27 | X046J6016Z | 2 | 2 | 2 | 2 | + | Hose - Flexible - Front | ||||||
| 28 | X046J2000Z | 1 | 1 | 1 | 1 | + | Bracket - Hose Securing - L/H | ||||||
| 29 | X046J2001Z | 1 | 1 | 1 | 1 | + | Bracket - Hose Securing - R/H | ||||||
| 30 | A074J6022Z | 2 | 2 | 2 | 2 | + | Pipe - Bundy - Flexible Hose to Front Caliper | ||||||
| 31 | A074J6020Z | 1 | 1 | 1 | 1 | + | Hose - Vacuum - Vacuum Take Off to Bundy Pipe - Connecting | ||||||
| 32 | A074J6021Z | 1 | 1 | 1 | 1 | + | Pipe - Bundy - Vacuum Take Off to T Piece | ||||||
| 33 | A074J6019Z | 1 | 1 | 1 | 1 | + | Hose - Vacuum - Bundy Pipe to T Piece Connecting | ||||||
| 34 | A074J6040Z | 1 | 1 | 1 | 1 | + | T Piece | ||||||
| 35 | A074J6091Z | 1 | 1 | 1 | 1 | + | Hose - Vacuum - T Piece to Front Servo Unit | ||||||
| 36 | A074J6020Z | 1 | 1 | 1 | 1 | + | Hose - Vacuum - T Piece to Reear Servo Unit |
