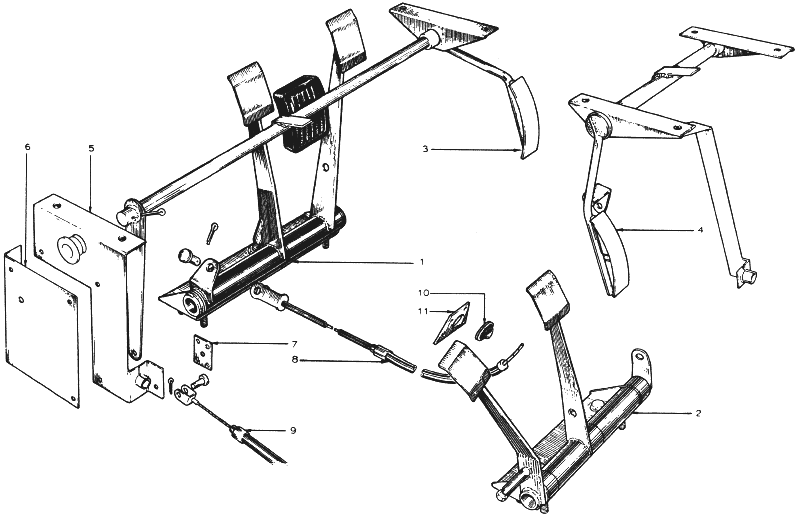

LOTUS EUROPA TC/TCS PARTS MANUALSection JE -- Brakes -- Pedal AssemblyLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (110K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | D074J0746Z | 1 | 1 | + | Assembly - Brake and Clutch Pedal | ||||||||
| 2 | A074J0203W | 1 | 1 | 1 | 1 | + | Assembly - Brake and Clutch Pedal | ||||||
| 3 | B074J0185Z | 1 | 1 | + | Assembly - Throttle Pedal | ||||||||
| 4 | A074J0205Z | 1 | 1 | 1 | 1 | + | Assembly - Throttle Pedal | ||||||
| 5 | A074J0196Z | 1 | 1 | + | Abutment - Throttle Cable | ||||||||
| 6 | A074J0198Z | 1 | 1 | + | Plate - Cable Abutment Cover | ||||||||
| 7 | A074J0200Z | 1 | 1 | + | Plate - Backing | ||||||||
| 8 | D074Q0037W | 1 | 1 | + | Cable - Clutch | ||||||||
| 8 | D074Q0040W | 1 | 1 | 1 | 1 | + | Cable - Clutch | ||||||
| 8 | W0084 | 1 | 1 | Pin - Clevis - Cable - Clutch | |||||||||
| 8 | W0086 | 1 | 1 | Pin - Split - Cable - Clutch | |||||||||
| 9 | B074E0147Z | 1 | 1 | + | Cable - Throttle (Dellorto Carbs) | Inner length: 108" Outer sheath: 97" | |||||||
| 9 | D074E0149Z | 1 | 1 | + | Cable - Throttle (Dellorto Carbs) | Inner length: 108" Outer sheath: 97" | |||||||
| 9 | C074E0148Z | 1 | 1 | Cable - Throttle (Stromberg Carbs) | |||||||||
| 9 | W0084 | 1 | 1 | 1 | 1 | Pin - Clevis - Cable - Throttle | |||||||
| 9 | W0086 | 1 | 1 | 1 | 1 | Pin - Split - Cable - Throttle | |||||||
| 9 | A074E0464Z | 1 | 1 | + | + | Spring - Throttle Return | |||||||
| 9 | A026S0028Z | 1 | 1 | Spring - Throttle Return | |||||||||
| 10 | X050B6158Z | 2 | 2 | + | Gromet - Throttle/Clutch Cable - Bulkhead | ||||||||
| 10 | X050B6158Z | 1 | 1 | 1 | 1 | + | Gromet - Throttle/Clutch Cable - Bulkhead | ||||||
| 11 | A074Q0042Z | 2 | 2 | + | Plate - Gromet | ||||||||
| 11 | A074Q0042Z | 1 | 1 | 1 | 1 | + | Plate - Gromet |
