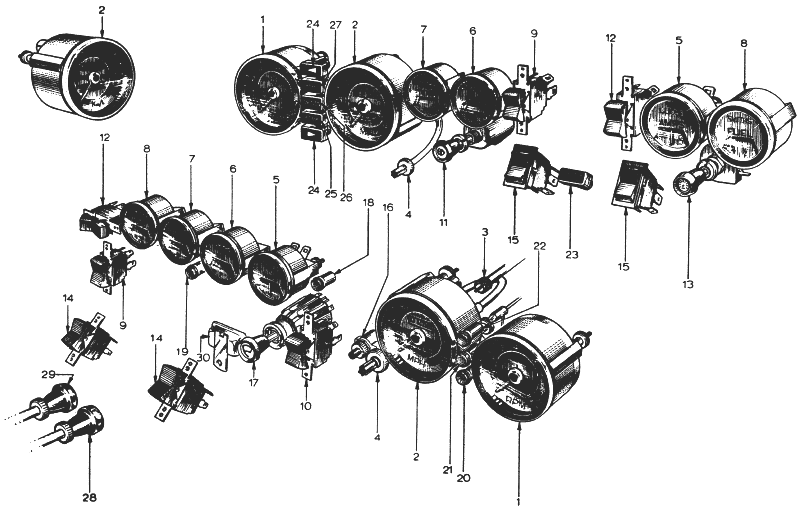

LOTUS EUROPA TC/TCS PARTS MANUALSection MD -- Electrical -- InstrumentsLotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback |
|---|
| Click here to open a new window containing a searchable PDF copy. (270K) |
 |  |  |  |  |  |  |  |  |  | Notes Bulletin Reference | |||
| 1 | X054N6001Z | Tachometer | - More Info - | ||||||||||
| 1 | A074N6004Z | 1 | 1 | + | + | Tachometer | - More Info - | ||||||
| 2 | X054N6002Z | 1 | 1 | Speedometer - m.p.h (Vehicles with Type 336 Gearboxes) | - More Info - | ||||||||
| 2 | X054N6003Z | 1 | + | Speedometer - k.p.h (Vehicles with Type 336 Gearboxes) | - More Info - | ||||||||
| 2 | A074N6002Z | 1 | 1 | 1 | 1 | Speedometer - m.p.h (Vehicles with Type 352/365 Gearboxes) | - More Info - | ||||||
| A074N6003Z | 1 | 1 | + | Speedometer - k.p.h (Vehicles with Type 352/365 Gearboxes) | - More Info - | ||||||||
| 3 | X046N6007Z | 1 | 1 | + | + | Speedometer Cable (Vehicles with Type 336 Gearboxes) | |||||||
| 3 | A074N6001Z | 1 | 1 | 1 | 1 | Speedometer Cable (Vehicles with Type 352/365 Gearboxes) | |||||||
| 4 | X054N6009Z | 1 | 1 | 1 | 1 | Speedometer Trip Cable | |||||||
| 4 | A054B1463Z | 1 | Bracket - Cable Securing | ||||||||||
| 5 | A054M6062Z | 1 | 1 | 1 | 1 | Ammeter, Amp Gauge | - More Info - | ||||||
| 6 | A074N6000Z | 1 | 1 | 1 | 1 | Oil Pressure Gauge | - More Info - | ||||||
| 6 | A065N0024Z | 1 | 1 | 1 | 1 | Oil Pressure Pipe | |||||||
| 6 | A050N0027Z | 1 | 1 | 1 | 1 | Adaptor - Oil Pipe to Block | |||||||
| 7 | X054N6005Z | 1 | 1 | 1 | 1 | Gauge - Water temperature | - More Info - | ||||||
| 8 | X054N6007Z | 1 | 1 | 1 | 1 | Gauge - Fuel | - More Info - | ||||||
| 9 | X054M6002Z | 1 | 1 | 1 | 1 | Switch - Heater Fan | |||||||
| 10 | X054M6002Z | 1 | 1 | 1 | + | + | Switch - Side.Head Lamps | ||||||
| 11 | A050M0227Z | 1 | Switch - Side.Head Lamps | ||||||||||
| 12 | X036M6094Z | 1 | 1 | + | Switch - Panel Lamps | ||||||||
| 12 | X050M6091Z | 1 | 1 | + | Switch - Hazard | ||||||||
| 12 | A036M6336Z | 1 | 1 | Switch - Hazard | |||||||||
| 13 | A074M6021Z | 1 | Switch. Dimmer - Panel Lamps | ||||||||||
| 13 | A074M0227Z | 1 | Knob - Dimmer Switch | ||||||||||
| 14 | X036M8290Z | 2 | + | + | Switch - Window Operating | ||||||||
| 14 | A054B1465M | 2 | + | + | Bezel - Switch (for X036M6290Z) | ||||||||
| 14 | A054B1462Z | 1 | + | + | Bracket - Switch Mounting (for X036M6290Z) | ||||||||
| 15 | A074M6012Z | 2 | 2 | 2 | 2 | Switch - Window Operating (smap-in type) | |||||||
| 16 | X036M6089Z | 1 | Switch - Brake Fail Lamp Test | ||||||||||
| 16 | A054B1539Z | 1 | Bracket - Switch Mounting | ||||||||||
| 17 | X050N6000Z | 1 | 1 | 1 | + | + | Switch - Wiper/Washer Pump | ||||||
| 18 | X036M6277Z | 1 | 1 | + | Lamp - Hazard Warning | ||||||||
| 18 | B050M0151Z | 1 | Lamp - Hazard Warning | ||||||||||
| 19 | X036M6277Z | 1 | Lamp - Brake Fail Warning | ||||||||||
| 20 | X036M6277Z | 1 | 1 | 1 | + | + | Lamp - Ignition Warning | ||||||
| 21 | X036M6279Z | 1 | 1 | 1 | + | + | Lamp - Main Beam | ||||||
| 22 | X036M6278Z | 1 | 1 | 1 | + | + | Lamp - Directional Indicator | ||||||
| 23 | A074M6013Z | 1 | 1 | Lamp - Seat Belt Warning | |||||||||
| 24 | A075H0114Z | 2 | Lamp - Directional Indicator | ||||||||||
| 25 | A075M6054Z | 1 | Lamp - Main Beam | ||||||||||
| 26 | A075M6055Z | 1 | Lamp - Ignition Warning | ||||||||||
| 27 | A075M6056Z | 1 | Lamp - Brake Warning | ||||||||||
| 28 | A074E0294Z | 1 | 1 | + | + | Cable - Choke | |||||||
| 28 | A074E0475Z | 1 | 1 | Cable - Choke | |||||||||
| 29 | C074P0075Z | 1 | 1 | 1 | 1 | Heater Cable | |||||||
| 30 | X050M6096Z | 1 | 1 | 1 | 1 | Instrument Stabilizer | - More Info - | ||||||
| 30 | A074M6016Z | Washer - Warning Lamp Locking (where fitted) (As Required) | |||||||||||
| 30 | X036M6291Z | Bulb (987) - Instrument (As Required) | - More Info - | ||||||||||
| 30 | X036M6130Z | Bulb (281) - Warning Lamp (As Required) | - More Info - |
