LOTUS EUROPA TC/TCS PARTS MANUAL

Section SA -- Exhaust -- Silencer and Pipes

Lotus Europa Central -- Tech Specifications -- TC/TCS Parts Home -- Manuals Home -- Feedback
Click here to open a new window containing a searchable PDF copy. (155K)

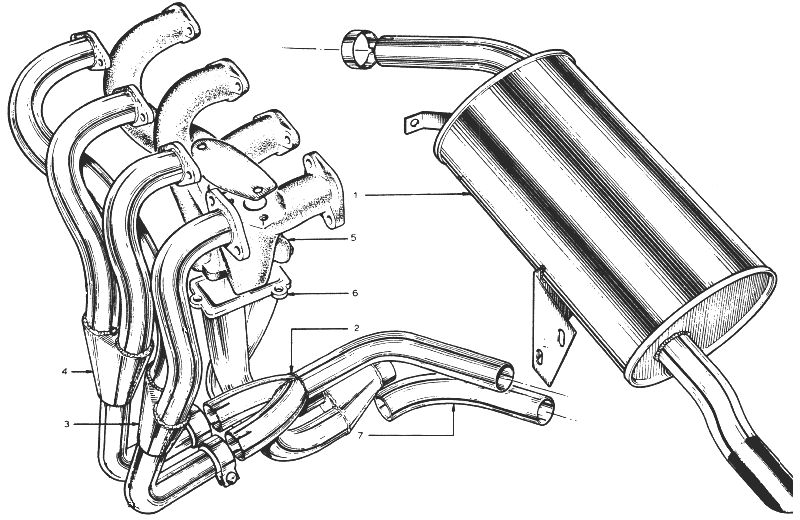

A074S0192Z - Silencer A074E0195Z - Y Piece A074E0193Z - Manifold - Outer A074E0194Z - Manifold - Inner A026S0001A - Manifold A074E0465Z - Downpipe A074S0189Z - Pipe - Intermediate


Item
Lotus #
Description
Change Point
Notes
Bulletin Reference
 A074S0184Z    1 1   ++Silencer (Replaced by A074S-192Z)
1 A074S0192Z    1 1 1 1 ++Silencer Type 336 Gearbox only
2 A074E0195Z    1    ++Y Piece
2 A074S6006Z    3    ++Clip - Y Piece to Silencer/Manifolds
3 A074E0193Z    1    ++Manifold - Outer
4 A074E0194Z    1    ++Manifold - Inner
5 A026S0001A    1  1  ++Manifold
5 A026S0001Y     1  1 ++Manifold
6 A074E0465Z    1 1 1 1   Downpipe
6 UFCT0526    3 3 3 3   Stud - Downpipe to Manifold 5/16" stud about 1-5/8" long.
The end that is threaded into the manifold is 5/16 x 18 TPI threaded for about 1/2", the end that the nut and washer go on is 5/16 24 TPI.
These studs are the same size as the ones in the head.
6 W0151    3 3 3 3   Nut - Downpipe to Manifold
7 A074S0189Z    1 1 1 1   Pipe - Intermediate
7 A050S6006Z    2 2 2 2   Clip - Intermediate Pipe to Manifold/Silencer
 A074S0212Z    1 1 1 1   Silencer Kit of: 1 Silencer - 1 Down Pipe - 1 Clamp - 1 Tail Pipe - 1 Clamp X046S6026Z Type 352/365 Gearboxes only
